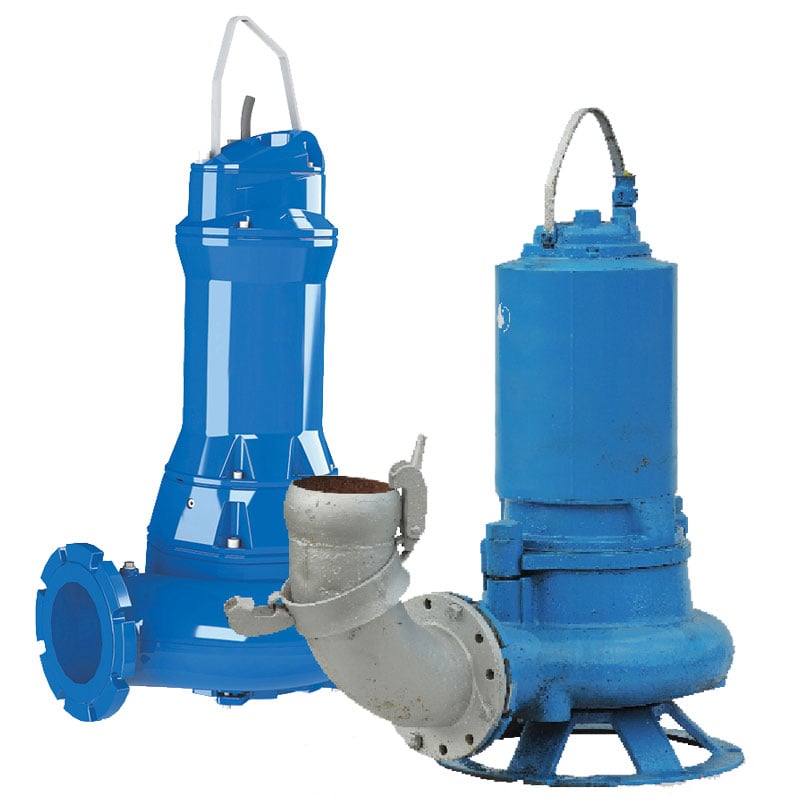

AFPK1575 / KE023 Electric Submersible Wastewater Pumps

These durable 8” electric submersible wastewater pumps offer a pumping solution for applications that include utilities, industrial, infrastructural and others. Capable of delivering maximum flows of up to 195 litres per second and heads of up to 34 metres, these high-performance pumps are known for their reliability and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

Key Features

Feature

Spiral-grooved plate and cutter

provides blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Flexible configuration suitable

for both wet & dry installations

No vibration allows smooth

running and constant flows

Product Specification

Additional information

Model	AFPK1575 / KE203
Motor type	415V (3-Phase) 50Hz
Motor rating	37kW / 22kW
Running current	69A / 44A
Discharge port	150mm / 200mm
Suction inlet port	150mm / 200mm
Maximum solids	100mm / 90 x 70mm
EX Rated	Yes / No
Cooling jacket	Yes
Guide rail option	1330 x 670mm / 1235 x 720mm
Transportable option	1485 x 1020mm / 1380 x 1255mm
Weight	612kg / 500kg

Downloads

Accessories

VARIABLE PANEL 18KW TO 56KW
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON-RETURN VALVE
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Manufacturing and industry
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
