Super Wispaset 80 eco

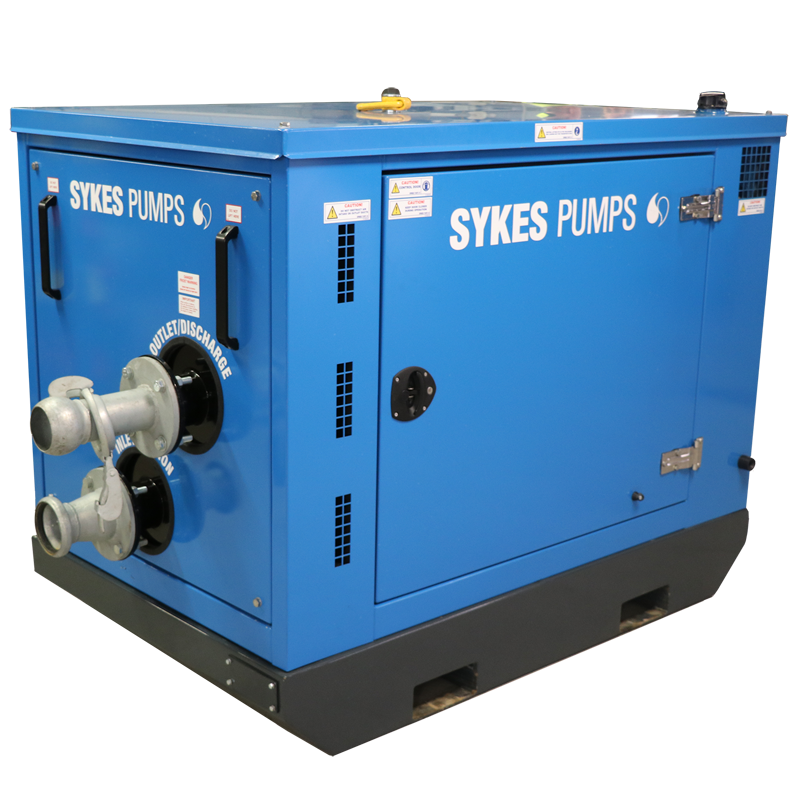

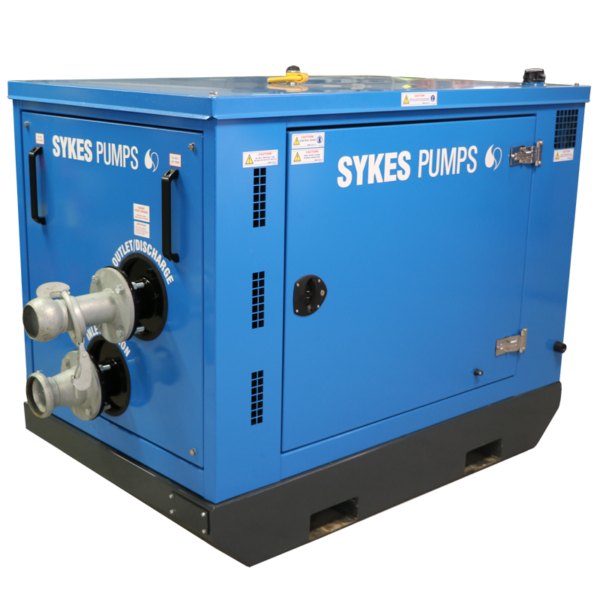

The Sykes Super Wispaset 80 eco is a 3” super silenced pump designed for unobtrusive use in a range of applications including construction, utilities, civil engineering, marine and quarries. Powered by a modern Hatz diesel engine, the unit is housed in an acoustic canopy to limit noise pollution and enable use in areas where quiet functionality is essential. A fully bunded 35-litre fuel tank enables the pump to function continuously for up to 24 hours – underlining the product’s economic fuel consumption. Capable of delivering heads of up to 24 metres and flows of up to 36 litres per second, this particular model combines impressive performance capabilities with low running costs and a small footprint. The Super Wispaset 80 eco unit features the revered Sykes Univac priming system, enabling the pump to prime and re-prime fully automatically from dry.

Key Features

Feature

Low noise operation

Fuel efficient operation

Small footprint

Easily changeable shaft seals

Compact and manoeuvrable

Solids handling up to 40 mm

Automatic priming and re-priming

Hard-wearing cast iron parts

Product Specification

Additional information

Performance	Max head:- 24m [br] Max flow:- 36 l/s [br] Max solid:- 40 mm
Weight	890 kg with fuel [br] 856 kg without fuel
Dimensions (L x W x H)	1800 x 1100 x 1400 mm
Noise level	@ 1m = 72 dBA [br] @ 7m = 64 dBA
Fuel capacity	35 litres. Max 24 hours
Pipe Connections	Suction:- 4" table D [br] Discharge:- 4" table D [br] Bauer couplings option:- 3"
Fuel Consumption	Full Load @ 1800 rpm: 1.99 litres/hour
Energy Efficient duty point	Fuel consumption @ 1500 rpm: 1.4 litres/hour

Downloads

Accessories

3″ SPLIT INTAKE
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ LAYFLAT HOSE PER METRE
3″ BLUE LAYFLAT X 25M CW BAUERS
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE
ROADRAMP

Environments

Construction
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Film Production and Events
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
