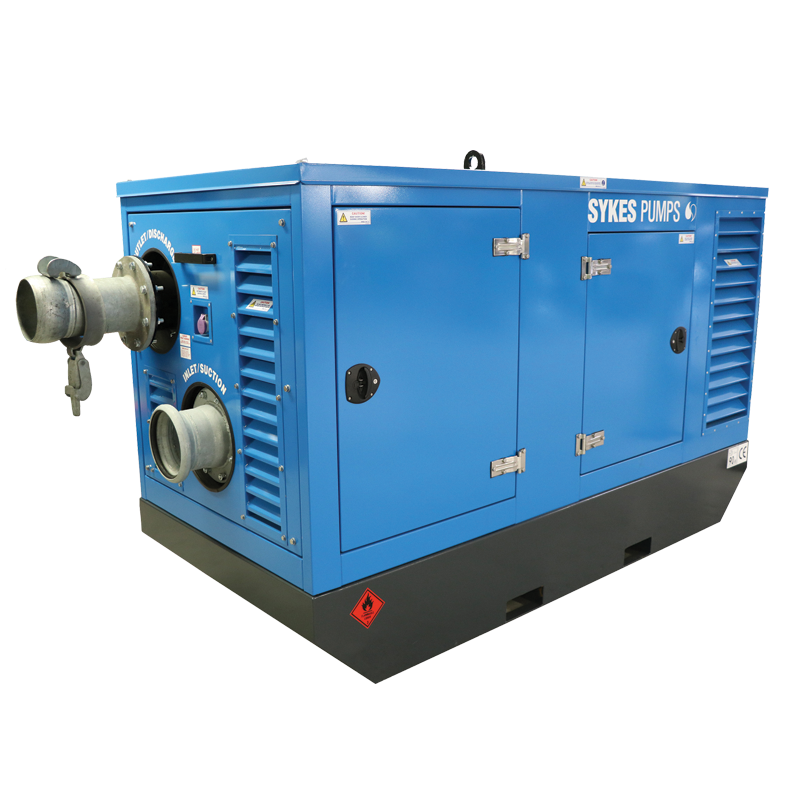

Super Wispaset 200 Ecotec super silenced pump

Sykes’ Super Wispaset 200 Ecotec is a super silenced pump designed for use on all general purpose applications. Featuring a British-manufactured JCB Ecomax engine to optimise performance, the Ecotec model offers maximum heads of 43 metres and a maximum flow rate of 161 litres per second. A built-in telemetry system provides detailed performance monitoring and location tracking to users based off site, as well as a remote start/stop option allowing full control at all times. This pump’s impressive fuel economy means it uses up to 10% less than comparable models while low fuel emissions ensure the Super Wispaset 200 Ecotec exceeds the requirements of the latest European legislation.

Key Features

Feature

British JCB Ecomax engine

for optimum performance

Telemetry system

for external performance monitoring and location tracking

Remote start/stop

for full control on or off site

Economical fuel consumption

using 10% less fuel than comparable models

Low noise levels

for use in built-up areas

Low emissions

and compliant with latest European legislation

Central lifting eye

for safe and easy crane manoeuvrability

Fork pockets

to ease loading and offloading

Sykes auto self-priming

enabling automatic priming from dry for ease of use

24-hour internal fuel tanks

separate larger fuel tanks available

Pre-installed float control

allowing automatic and unattended operation

Solids handling

ensuring suitability to a wide range of applications

Product Specification

Additional information

Performance	Max head:- 43 m [br] Max flow:- 161 l/s [br] Max solid:- 75 mm
Weight	2426 kg with fuel [br] 2314 kg without fuel
Dimensions (L x W x H)	2720 x 1250 x 1790 mm
Noise level	@7m = 65 dBA
Fuel capacity	170 litres. Max 24 hours
Pipe Connections	Suction:- 8" Table D [br] Discharge:- 8" Table D [br] Bauer couplings option
Fuel Consumption	Full load @ 1800 rpm: 15 litres/hour
Energy Efficient duty point	Fuel Consumption @1500 rpm: 7 litres/hour

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water
Emergency sewer repairs
Sludge
Utilities
Slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Waste water
