Super Wispaset 150 Tier V super silenced pump

Super Wispaset 150 super silenced pump

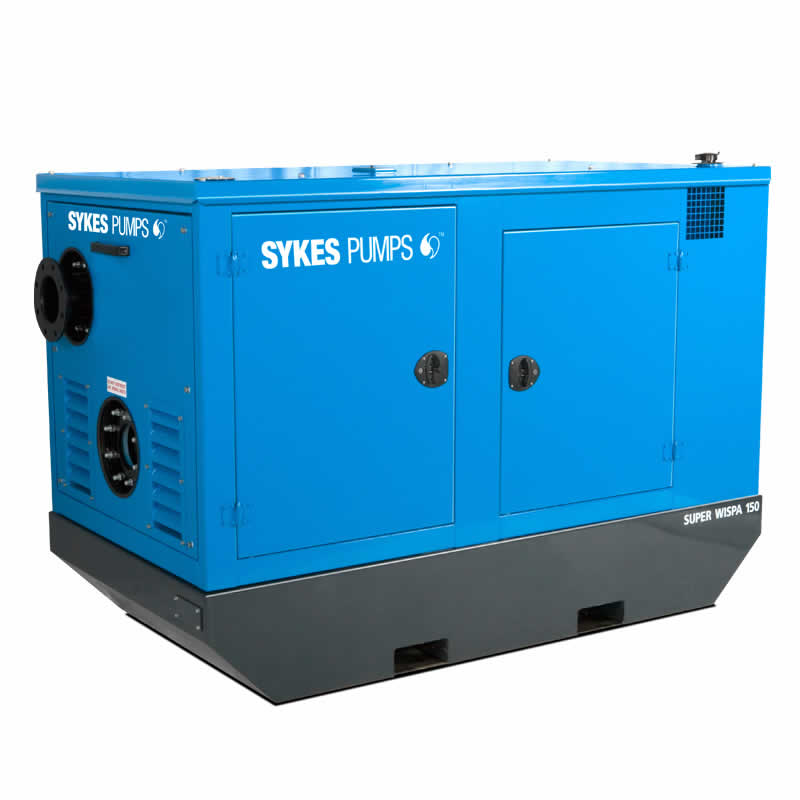

The Super Wispaset 150 is a 6” super silenced pump that has been specifically designed for applications where low noise operation is essential. The pump can deliver flows up to 90 litres per second and operate at a maximum head of 38 metres. Compatibility with an advanced telemetry system allows the unit to be monitored remotely, meaning there is no need for an engineer to be constantly on site. Like all pumps in our super silenced range, this model is bunded and offers maximum protection against oil spillages.

Key Features

Feature

Reduced noise levels

Fuel efficient operation

Capable of unattended operation

Easily changeable shaft seals

Compact and manoeuvrable

Solids handling up to 52 mm

Automatic priming and re-priming

Hard-wearing cast iron parts

Product Specification

Additional information

Performance	Max head:- 38 m [br] Max flow:- 90 l/s [br] Max solid:- 52 mm
Weight	1990 kg with fuel [br] 1800 kg without fuel
Dimensions (L x W x H)	2310 x 1250 x 1535 mm
Noise level	@7m = 65 dBA
Fuel capacity	175 litres. Max 24 hours
Pipe Connections	Suction:- 6" Table D [br] Discharge:- 6" Table D [br] Bauer couplings option
Fuel Consumption	Full load @ 1800 rpm:- 9.8 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1,500 rpm:- 4.1 litres/hour

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water transfer
Emergency sewer repairs
Sludge
Utilities
Light slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Wastewater
