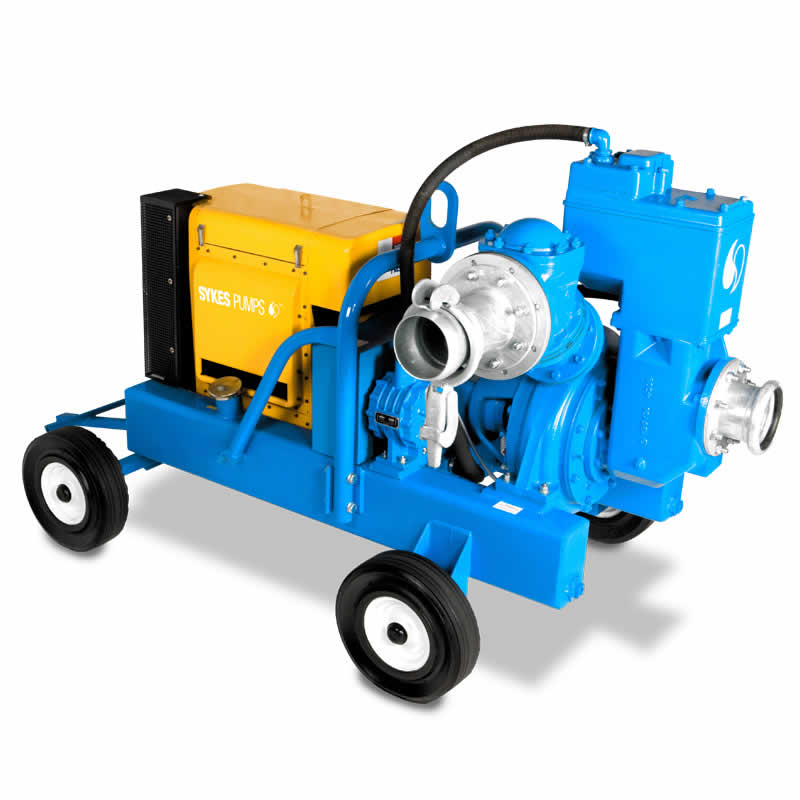

GP 150M HATZ Silenced Pump

The GP 150M HATZ is conceptually the same as the GP 100M HATZ but with an enhanced pumping performance. Capable of delivering flows of up to 90 litres per second and a maximum head of 38 metres, the GP 150M HATZ retains a canopied engine and silenced functionality to allow deployment in noise sensitive areas. A popular choice among contractors, utilities and construction companies, this pump can also prime and re-prime from dry to maximise fuel economy.

Key Features

Feature

Silenced engine

for reduced noise output

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

52 mm solids handling

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Hours of unattended operation

for continuous use

Product Specification

Additional information

Performance	Max head:- 38 m [br] Max flow:- 90 l/s [br] Max solid:- 52 mm
Weight	1430 kg with fuel [br] 1325 kg without fuel
Dimensions (L x W x H)	2100 x 1500 x 1635 mm Typical length with tow bar 2780
Noise level	1m = 90 – 94 dBA [br] 7m = 73 – 77 dBA
Fuel capacity	122 litres. Max 24 hours with cleaning and flushing facilities
Pipe Connections	Suction:- 6" table D [br] Discharge:- 6" table D [br] Bauer couplings option:- 6"
Fuel Consumption	Full load @ 1800 rpm:- 6 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm:- 3.98 litres/hour

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction projects

GP 150M HATZ Silenced Pump Quote
