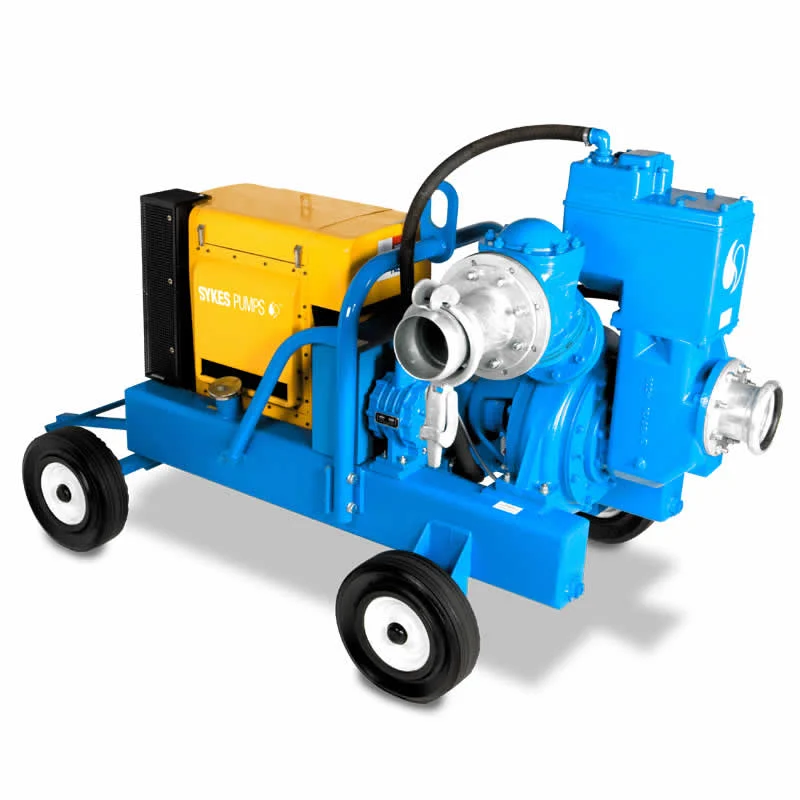

GP 100M HATZ Silenced Pump

The GP 100M HATZ is the go-to unit for clients requiring a general purpose pump with Wispaset characteristics. It’s proven denoised engine allows inconspicuous deployment in applications where noise may be an issue. Featuring a canopied engine, the GP 100M HATZ can operate at heads of up to 31 metres and deliver flows of up to 45 litres per second. Popular with contractors and utilities companies, this unit features the Sykes Univac vacuum system that can prime and re-prime automatically to maximise efficiency.

Key Features

Feature

Silenced engine

for reduced noise output

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

44 mm solids handling

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Hours of unattended operation

for continuous use

Product Specification

Additional information

Performance	Max head:- 31 m [br] Max flow:- 45 l/s [br] Max solid:- 44 mm
Weight	1103 kg with fuel [br] 998 kg without fuel
Dimensions (L x W x H)	1940 x 1450 x 1500 mmTypical length with tow bar 2620
Noise level	@ 1m = 90 – 94 dBA [br] @ 7m = 73 – 77 dBA
Fuel capacity	69 – 122 litres. Max 24 hour with cleaning and flushing facilities
Pipe Connections	Suction:- 4" table D [br] Discharge:- 4" table D [br] Bauer couplings option:- 4"
Fuel Consumption	Full load @ 1800 rpm:- 4.5 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm:- 2.26 litres/hour

Downloads

Accessories

4″ SPLIT INTAKE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
RETAIL GAS OIL
