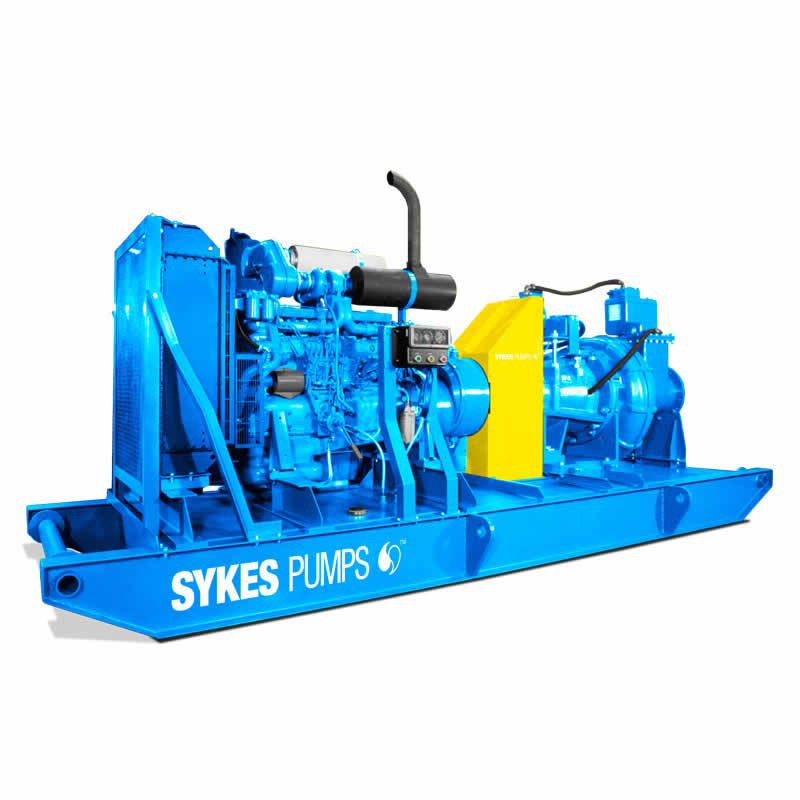

UVO 200/150F (D70) Medium & High Head

The UVO 200/150F (D70) is a hard iron pump intended for the most arduous high head duties and combines impressive pumping performance with sustained high efficiency and reliability.
All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Giving a maximum head of 108 metres and flows of up to 325 litres per second, the UVO 200/150F is driven by an industry leading diesel engine that meets all EU emission control standards. This unit requires an independent fuel tank and comes on a skid mounted chassis to simplify the installation process.

Key Features

Feature

Hours of

unattended operation for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Solids handling

of up to 60 mm

Silenced option available

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Simple to maintain

Standard open-set unit

Product Specification

Additional information

Performance	Max head:- 108m [br] Max flow:- 325 l/s [br] Max solid:- 60 mm
Weight	8450 kg with fuel [br] 6320 kg without fuel
Dimensions (L x W x H)	5330 x 2385 x 2260 mm
Fuel capacity	Tank size on application, separate bunded tanks available.
Pipe Connections	Suction:- 8" Table D [br] Discharge:- 6" Table D [br] Option Bauer Couplings
Fuel Consumption	Full load @ 1800 rpm:- 99.9 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1600 rpm:- 72.67 litres/hour

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ FLANGED NP16 90* BEND
6″ FLANGED NP16 GATEVALVE
6″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries
Construction
