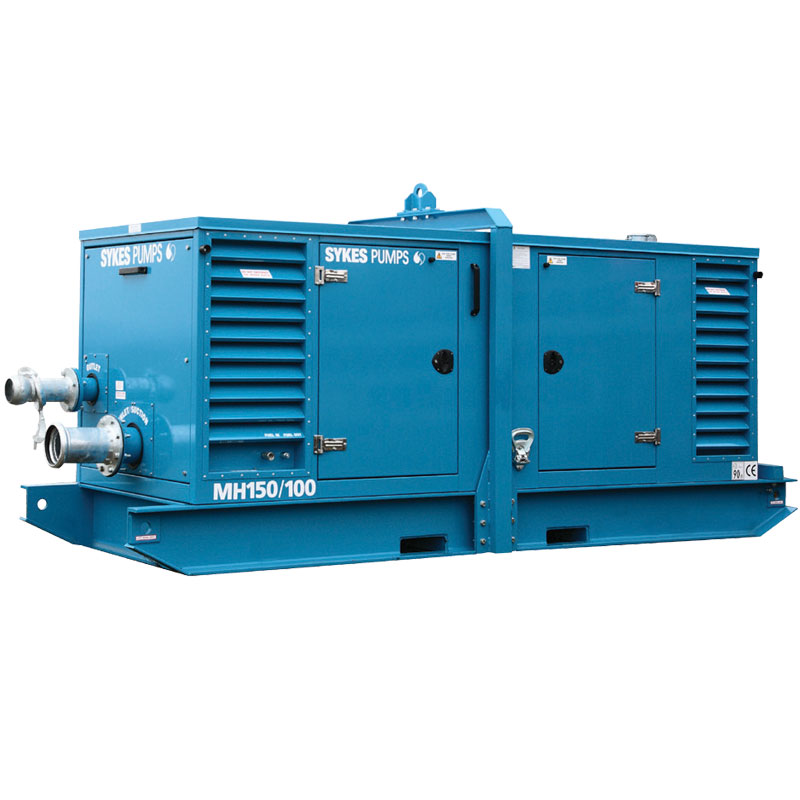

MH150/100 SUPER WISPASET Medium Head

The MH150/100 SUPER WISPASET is designed for all general purpose medium head applications and is ideally suited for Open Cast Mining and Quarrying applications. The carefully designed high efficiency impeller gives excellent Head and Flow characteristics.

Key Features

Feature

Hard wearing cast Iron parts

Hours of unattended operation

Corrosion resistant

Automatic priming and re-priming

Fuel efficient engine

Compact and manoeuvrable

Available as skid mounted

Electric start

Ease of maintenance

Solids handling up to 20 millimetres

Available as super silenced.

Product Specification

Additional information

Performance	Max head:- 105 m [br] Max flow:- 90 l/s [br] Max solid:- 20 mm
Weight	2905 kg
Dimensions (L x W x H)	4090 x 1370 x 1685 mm
Noise level	@7m= 70 dBA
Pipe Connections	Suction:- 6" Table D [br] Discharge:- 4" NP16 [br] Bauer couplings option
Fuel Consumption	Full load @ 1800 rpm:- 26.5 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1800 rpm:- 21.9 litres/hour

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
4″ 45* FLANGED NP16
4″ 90*PLANGED NP16 BEND
4″ GATEVALVE
4″ NON RETURN VALVE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Film Production and Events
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Agriculture
