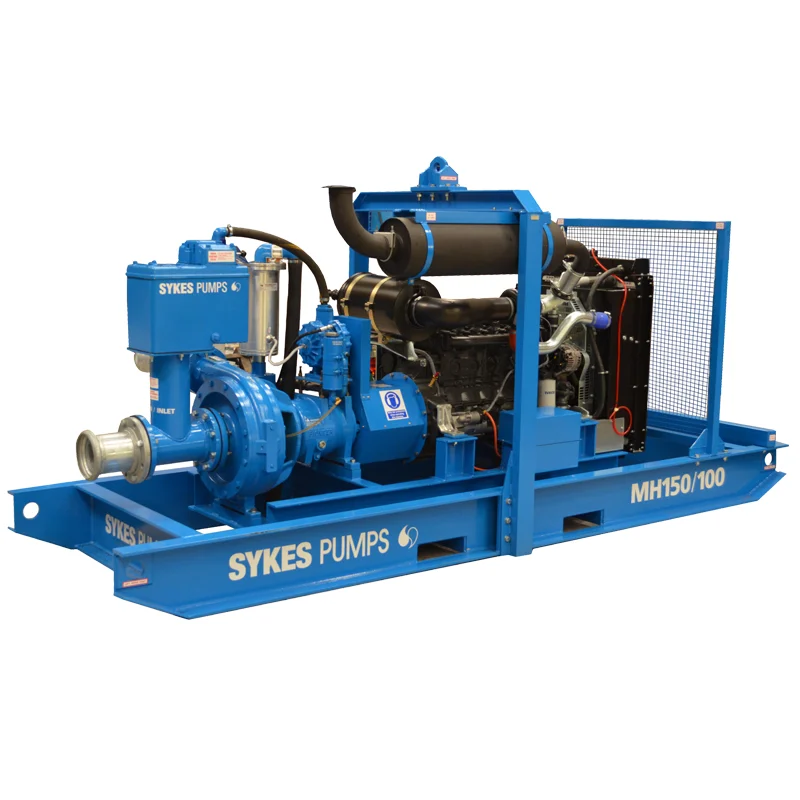

MH150/100 Medium Head

The MH150/100 is designed for all general purpose medium head applications and is ideally suited to open cast mining and quarrying applications. Identical to the popular Super Wispaset MH150/100 bar the absence of a silent canopy, this model typically gives a maximum head of 105 metres and flows of up to 90 litres per second. Powered by a reliable and efficient diesel engine, the MH150/100 is capable of automatically priming and re-priming from dry.

Key Features

Feature

Hours of

unattended operation for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Solids handling

of up to 20 mm

Super silenced

option available

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Simple to maintain

Requires

an external fuel tank

Product Specification

Additional information

Performance	Max head:- 105 m [br] Max flow:- 90 l/s [br] Max solid:- 20 mm
Weight	2100 kg
Dimensions (L x H x W)	4090 x 1370 x 1685 mm
Pipe Connections	Suction:- 6" Table D [br] Discharge:- 4" NP16 [br] Bauer couplings option
Fuel Consumption	Full load @ 1800 rpm:- 26.5 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1800 rpm:- 21.9 litres/hour
