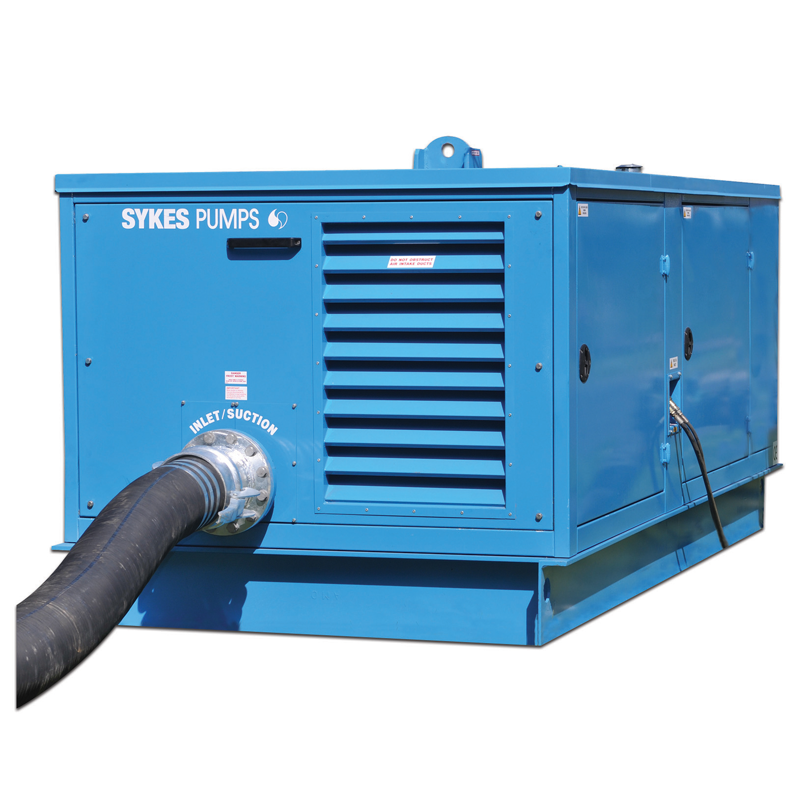

HS200

The HS200 is a medium to high head solids handling pump, ideally suited for the wastewater industry, the pumpset is fully silenced and features automatic stop/start technology.

The highly efficient screw type impeller ensures optimum efficiency where the need to pump heavy rag and sludge, either over long distances or where higher than normal heads is required.

Key Features

Feature

Hard wearing cast Iron parts

Hours of unattended operation

Corrosion resistant

Automatic priming and re-priming

Fuel efficient engine

Adjustable wear liners Hi- Chrome

Mechanical Seal

Compact and manoeuvrable

Available as skid mounted

Electric start

Ease of maintenance

Solids handling up to 95 millimetres

Available as super silenced.

Product Specification

Additional information

Performance	Max head:- 55m [br] Max flow:- 190 l/s [br] Max solid:- 95 mm
Weight	3,500 kg
Dimensions (L x W x H)	3640 x 1750 x 1740 mm
Noise level	@7m= 70 dBA
Pipe Connections	Suction flange:- 8" Table D [br] Discharge flange:- 8" Table D [br] Optional Bauer Couplings
Fuel Consumption	Full load @ 1200 rpm:- 20.47 litres/hour
Fuel Tank Capacity	Separate external fuel tank
Energy Efficient duty point	Fuel Consumption @ 1200 rpm:- 14 litres/hour

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL
