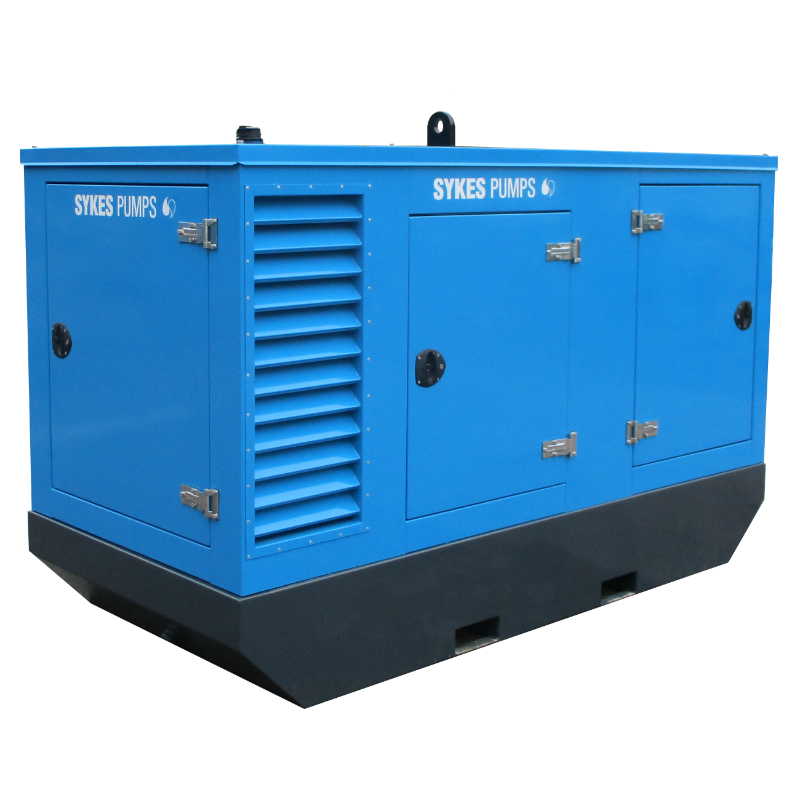

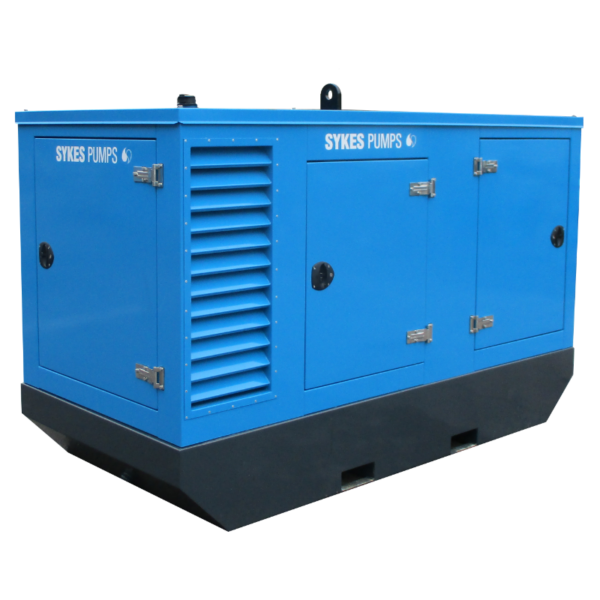

HP150 Super Silenced

The HP150 Super Silenced is a low-noise high performance pump that has been purposefully manufactured for projects where very quiet operation is required. Specifically designed for use in jetting, dust suppression and temporary fire pump applications, the HP150 Super Silenced combines efficiency with a suitability to unattended operation. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 90 metres and maximum flows of 100 litres per second. This 6” jetting pump incorporates a built-in fuel tank with a 170-litre capacity, enabling it to run for up to 24 hours before requiring refuelling. Featuring the Sykes Univac priming system, this pump utilises a 25 cfm rotary vacuum pump to allow automatic priming and re-priming from dry.

Key Features

Feature

Low noise operation

for discreet use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

Hours of unattended operation

for continuous use

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Standard skid base chassis

for easy placement

Product Specification

Additional information

Performance	Max Head:- 90m [br] Max Flow:- 100 l/sec
Weight	2,462 kg with fuel [br] 2,314 kg without fuel
Dimensions (LxWxH) mm	2,720 x 1,250 x 1,790
Noise level	@7m= 65 dBA / 90 Lwa
Fuel Tank Capacity	170 litres. Max 24 hours
Pipe Connections	Suction:- 6" table D [br] Bauer couplings option [br] Discharge:- 4" NP16 flanged
Fuel Consumption	Full Load @ 2,200 rpm:- 22 litres/hour
Energy Efficient duty point	Fuel consumption @ 2,000 rpm:- 14 litres/hour

Downloads

Accessories

2.5 INCH X 60FT JETTING HOSE
JETTING STRAINER
6″ X 3M W/A BAUER HOSE
6″ 20FT W/A SUCTION HOSE BAUER
6″ 20FT POLYTUBE
6″ X 6MTR STEEL BAUER PIPE
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 3000 LITRE

Environments

Environmental
Emergency pumping services
Docks, ports and harbours
Refineries
Local authorities
Film production and events
Offshore and float outs
Quarries and mines
Building and construction
Manufacture and industry
Power generation
Tunnelling
Agriculture
Washing plants
