HP100

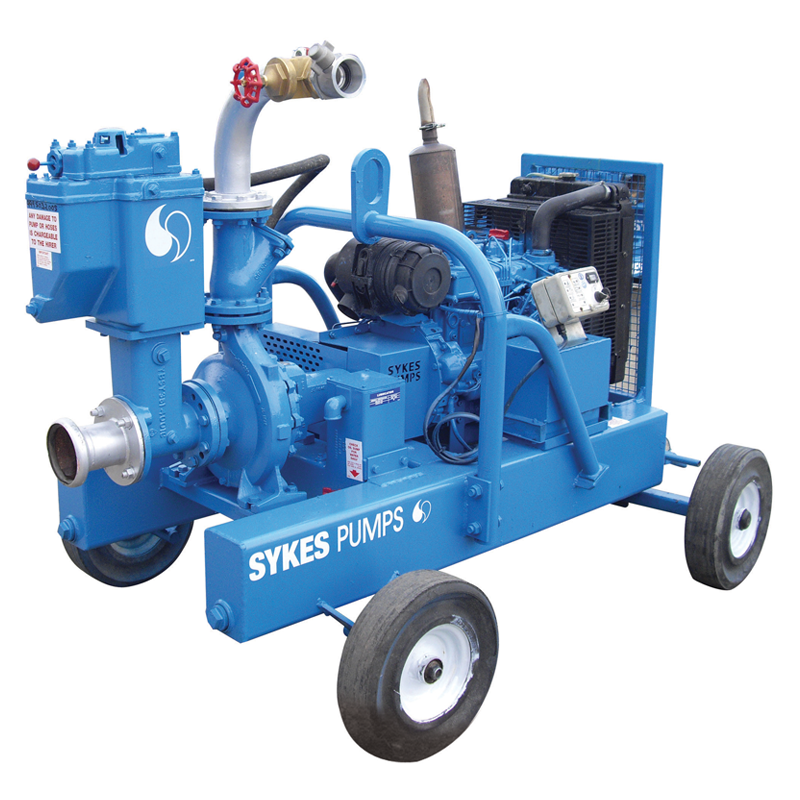

The HP100 is a high performance pump designed for a range of applications including jetting, dust suppression and temporary fire pump duties. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 98 metres and maximum flows of 44 litres per second. This 4” jetting pump has a built-in fuel tank with a 122-litre capacity, allowing it to run for 24 hours before requiring refuelling. Incorporating the Sykes Univac priming system, the HP100 utilises a 25 cfm rotary vacuum pump allowing automatic priming and re-priming from dry.

Key Features

Feature

Hours of

unattended operation for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

Super silent

skid option available

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Available on a 4 wheeled

site chassis for swift delivery

Product Specification

Additional information

Performance	Max head:- 98 m [br] Max flow:- 44 l/s
Weight	1004 kg with fuel [br] 907 kg without fuel
Dimensions (L x W x H)	1940 x 1450 x 1530 MM
Noise level	@ 7m = 77 – 82 dBA
Fuel capacity	122 litres
Pipe Connections	Suction:- 4" Table D or 4" Bauer [br] Discharge:- 2 1/2" Instantaneous adapter or (3" Bsp)
Fuel Consumption	Full load @ 2800 rpm:- 10.8 litres/hour
Energy Efficient duty point	Fuel Consumption @ 2500 rpm:- 7.7 litres/hour

Downloads

Accessories

2.5 INCH X 60FT JETTING HOSE
JETTING STRAINER
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
RETAIL GAS OIL
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 3000 LITRE

Environments

Environmental
Emergency pumping services
Docks, ports and harbours
Refineries
Water and waste treatment
Local authorities
Film production and events
Offshore and float outs
Quarries and mines
Building and construction
Manufacture and industry
Power stations
Tunnelling
Agriculture
