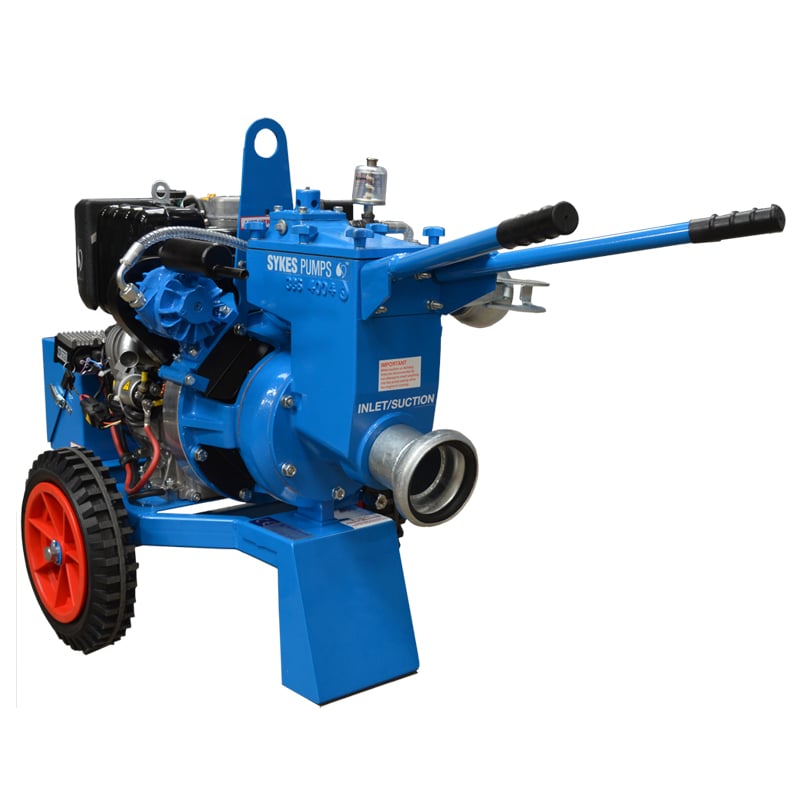

Minivac eco General Purpose Pump

The MINIVAC eco is the industry standard, 2/3” entry level pump for contractors, construction, utilities and civil engineering. The pump has been specifically designed for arduous applications, utilising tried and tested components to ensure maximum reliability and fuel savings of up to 50%.The pump complies with the latest EU emission standards and is capable of handling everything from dirty water to light sludge and slurry. Like it’s bigger brothers, it incorporates the unique Sykes Univac vacuum system, enabling the pump to prime and re-prime automatically from dry.

Key Features

Feature

Up to eight hours

of running time on a single tank of fuel

Hard-wearing parts

for robust applications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

28 mm solids handling

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Lightweight, robust 2 wheeled site chassis

for swift delivery

Product Specification

Additional information

Performance	Max head:- 28 m [br] Max flow:- 15 l/s [br] Max solid:- 28 mm
Weight (kg)	180kg with fuel / 168kg without fuel
Dimensions (L x W x H)	1350 x 600 x 840 mm
Noise level	@ 7m = 70 – 77 dBA
Fuel capacity	5 litres. Max 8 hours, separate 24 hour fuel tank available
Pipe Connections	Suction:- 3" BSP Female thread [br] Discharge:- 2" BSP Female threadBauer couplings option 2" or 3”
Fuel Consumption	Full load @ 2000 rpm:- 0.71 litres/hour
Energy Efficient duty point	Fuel Consumption @ 2000 rpm:- 0.58 litres/hour

Downloads

Accessories

2″ SPLIT INTAKE
2″ 20FT W/A SUCTION HOSE BAUER
2″ X 6M HELIFLEX PVC BAUER HOSE
2″ LAYFLAT HOSE PER METRE
2″ BLUE LAYFLAT X 25M CW BAUERS
2″ BLUE LAYFLAT X 50M CW BAUERS
2″ 60* BEND
2″ GATEVALVE
2″ NON RETURN VALVE
RETAIL GAS OIL

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction dewatering
