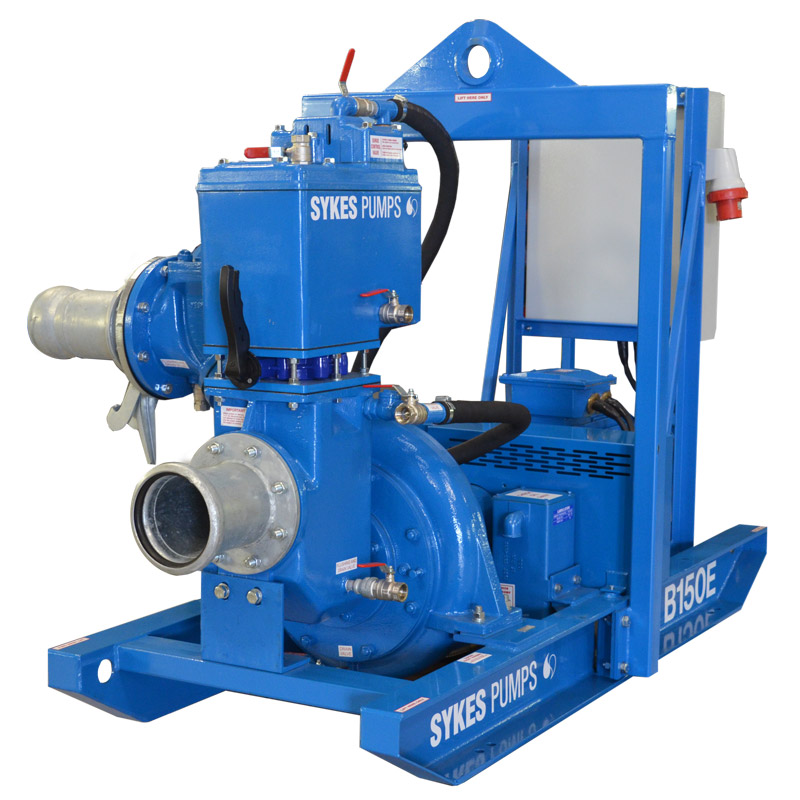

B150E Bentonite Pump

The B150E pump has been specifically designed to pump slurries and is known for its reliability when handling bentonite and other challenging liquids. This model features an electric motor so does not require a fuel tank, making it much lighter and easier to deploy where required. An open pump end allows easy cleaning and flushing where necessary and simple maintenance. Featuring the Sykes Univac priming system, this unit can prime and re-prime from dry and deliver maximum flows of up to 78 litres per second and a maximum head of 27 metres.

Key Features

Feature

Electric motor

for quieter functionality

Skid mounted unit

Capable

of unattended operation

Emergency stop

safety precaution

Compact and manoeuvrable

Solids handling

up to 52 mm

Automatic priming and re-priming

Hard-wearing

cast iron parts

Product Specification

Additional information

Performance	Max head:- 27 m [br] Max flow:- 78 l/s [br] Max solid:- 52 mm
Weight (kg)	1050kg
Dimensions (L x W x H)	2100 x 1000 x 1560 mm
Noise level	@7m= 68 dBA
Pipe Connections	Suction:- 6" table D [br] Discharge:- 6" table D [br] Bauer couplings option 6"
Motor	30 kW IE3 motor 415v 3ph 50 Hz

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE

Environments

Civil engineering
Docks, Ports and Harbours
Construction
Tunnelling
Quarries and Mines
Water and Waste
Environmental
Industrial
