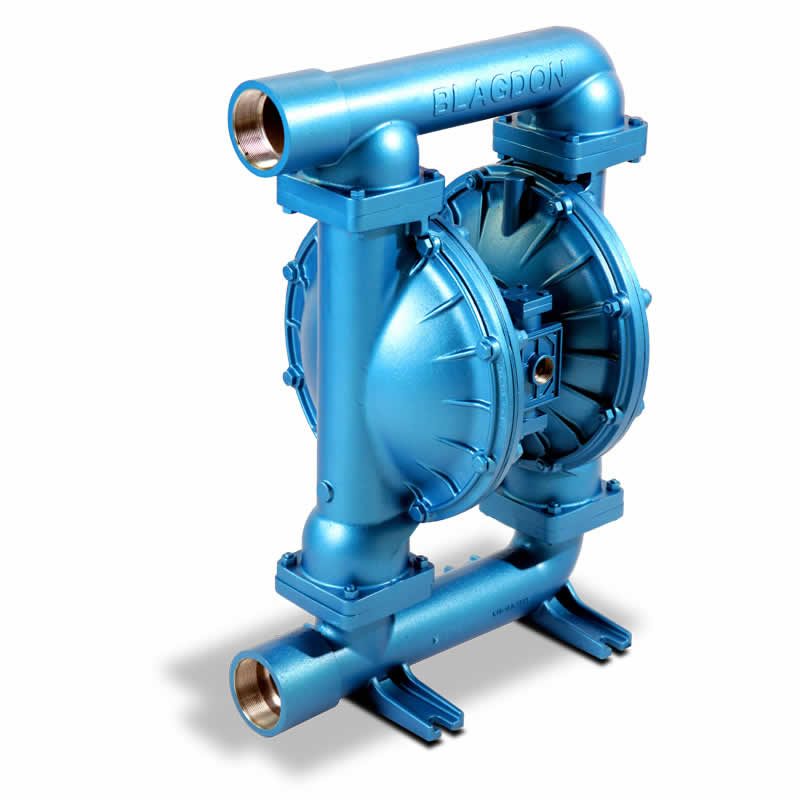

Beaver 75 Air Pump

The Beaver 75 Air Pump is a double diaphragm air pump and is available with a combination of aluminium, cast iron, or stainless steel wetted parts and center section with a choice of elastomer option material. Options are available for the specific transfer of aggressive liquids or the hygienic handling of food substances.

Key Features

Feature

Leak free

pumping

Self priming

to over 6 meters

Zero air leakage

when stalled

Product Specification

Additional information

Performance	Max head:- 89 m [br] Max flow:- 13.5 l/s [br] Max solids:- 10 mm
Weight (kg)	83.7
Dimensions (L x W x H)	575 x 460 x 746
Motor	Efficient air motorAutomatic overspeed control
Pipe Connections	3" BSP or 3" Bauer
Max air inlet pressure (psi)	125
Max air inlet consumption (cfm)	160
Note	Side discharge and centre discharge available

Downloads

Accessories

3″ SPLIT INTAKE
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ LAYFLAT HOSE PER METRE
3″ BLUE LAYFLAT X 25M CW BAUERS
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE

Environments

Clean and dirty water
Food processing
Waste water
