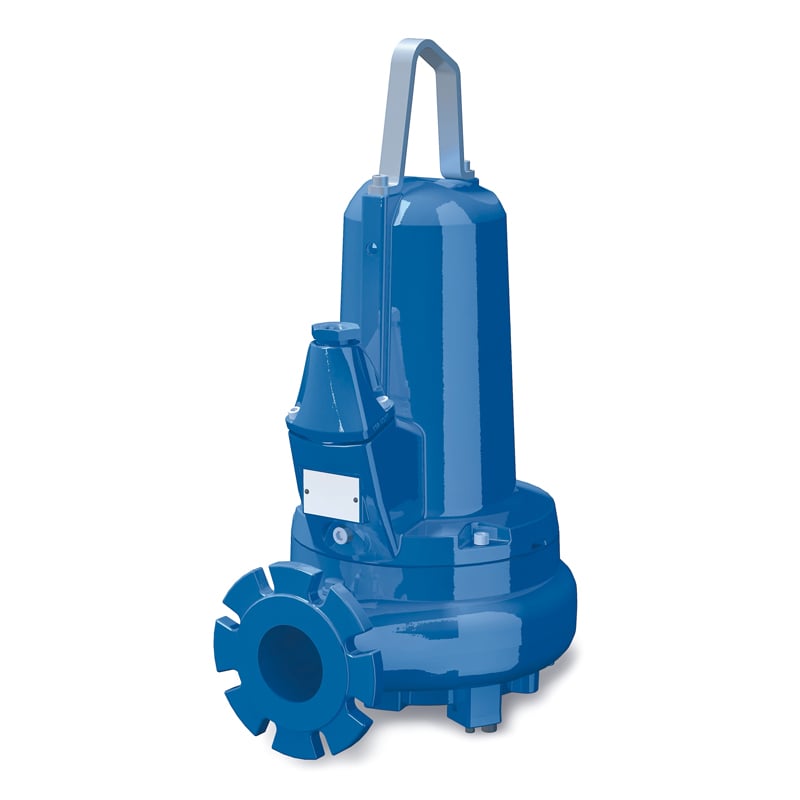

For private, commercial, municipal and industrial wastewater applications, the robust 3” XFP80E pump is ideally suited to small diameter discharge applications. Powered by an efficient 11kW high efficiency motor, the unit delivers heads of up to 36 metres and a maximum flow of up to 35 litres per second. This economical submersible sewage pump is primarily designed for use in standard and network pumping stations. The presence of a premium efficiency motor and 45mm solids handling Contrabloc impeller helps to conserve energy and keep running costs low.
Feature
| Model | XFP80E CB1.3 |
|---|---|
| Motor type | 415V |
| Motor rating | 11kW |
| Max power input | 12.1kW |
| Running current | 20.1A |
| Discharge spigot | 3" |
| Maximum solids | 45mm |
| EX Rated | Yes |
| Cooling jacket | Yes |
| Guide rail option Height | 795mm |
| Free standing Height | 900mm |
| Maximum Width | 690mm |
| Minimum Width | 450mm |
| Weight | 175kg |
