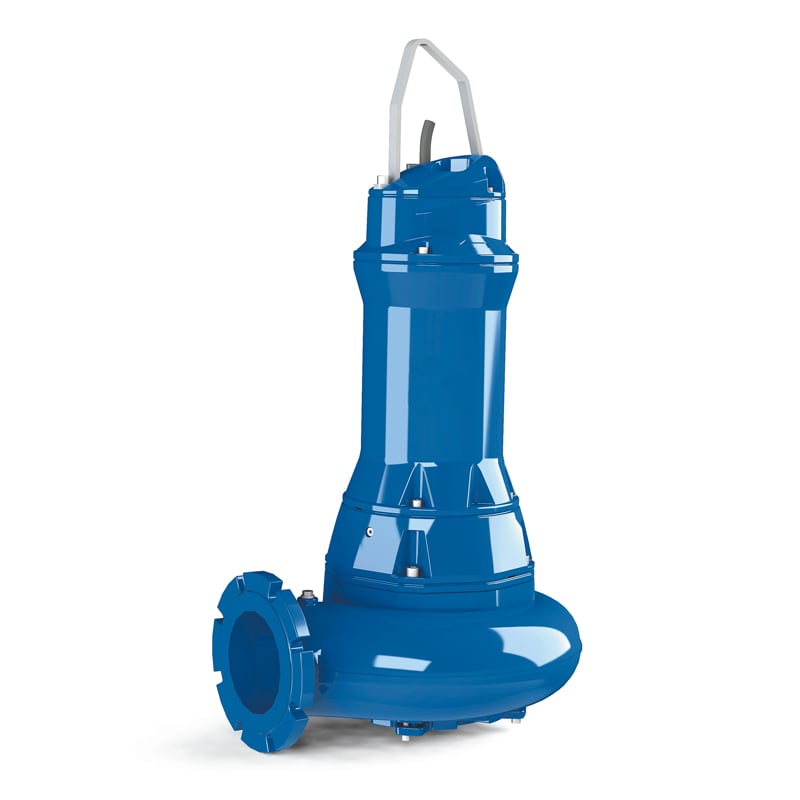

The XFP150G is a medium-sized 6” electric submersible wastewater pump designed to provide clients with a robust solids handling solution and is capable of operating at heads of up to 27 metres. Delivering a maximum flow of 94 litres per second, the pump has been manufactured for use in a broad spectrum of environments that typically include municipal and utility applications. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.
Feature
| Model | XFP150G CB1.3 |
|---|---|
| Motor type | 415V |
| Motor rating | 16kW |
| Max power input | 17.4kW |
| Running current | 33.1A |
| Discharge spigot | 6" |
| Maximum solids | 100mm |
| EX Rated | Yes |
| Cooling jacket | Yes |
| Guide rail option Height | 1300mm |
| Free standing Height | 470mm |
| Maximum Width | 1000mm |
| Minimum Width | 630mm |
| Weight | 370kg |
