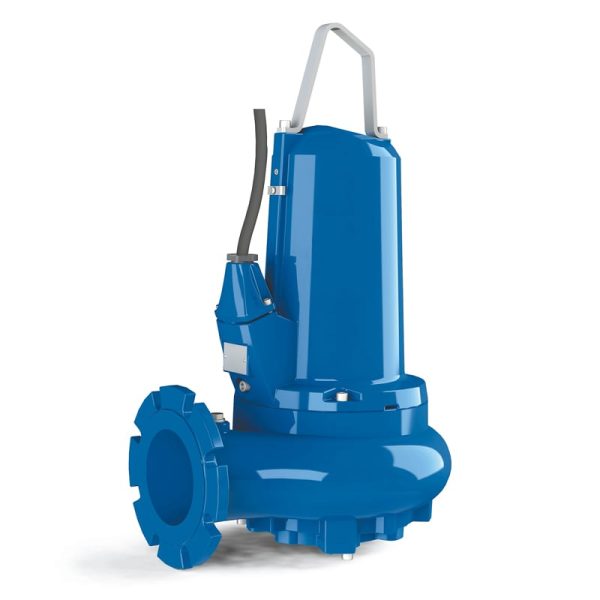

These cast-iron, robust Sulzer ABS electric submersible wastewater pumps offer a smooth-running pumping solution designed for a range of environments including utilities, industrial, infrastructural and others. This particular model is known for its long-term reliability and versatility for specialist applications. Capable of delivering maximum flows of up to 60 litres per second and heads of up to 24 metres, these popular pumps handle solids of up to 80mm and can be adapted to any guide rail arrangement you have in place. When used with an automatic control feature it can guarantee the pump only runs when required, conserving energy throughout a project.
Feature
| Model | XFP100E CB1.1 / XFP100E CB1.3 |
|---|---|
| Motor type | 415V |
| Motor rating | 9kW / 6kW |
| Max power input | 9kW / 6kW |
| Running current | 18.1A / 13.6A |
| Discharge spigot | 4" |
| Maximum solids | 80mm |
| EX Rated | Yes |
| Cooling jacket | Yes |
| Guide rail option | 835mm / 765mm |
| Free standing | 905mm / 835mm |
| Maximum Width | 835mm |
| Minimum Width | 490mm |
| Weight | 190kg / 180kg |
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Electric
8.8A / 12.5A
141kg / 144kg
Electric
13.6A / 6.7A
120kg / 107kg
