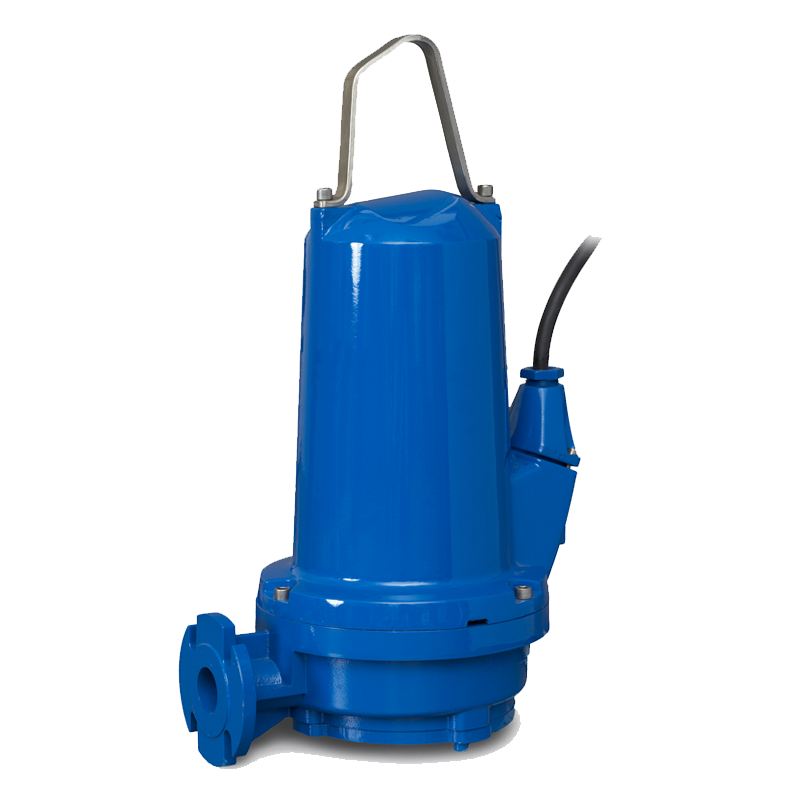

Piranha sewage macerator pumps come complete with a shredding action that provides reliable and economical discharge of effluent under pressure. These robust grinder pumps are capable of achieving heads up to 50 metres and can handle flows up to 6 litres per second. Since material passing through the pump is macerated, existing pipes as small as 2” can be used to discharge the waste. A premium efficiency motor (IE3) with a rating of 3kW is fitted to reduce energy usage and minimise running costs.
Feature
| Model | M30 |
|---|---|
| Motor type | 415V |
| Motor rating | 3kW |
| Max power input | 3.4kW |
| Running current | 5.6A |
| Discharge spigot | 2" |
| Maximum solids (mm) | Macerator |
| EX Rated | Yes/No |
| Cooling jacket | N/A |
| Guide rail option Height | 586mm |
| Guide rail option Maximum Width | 550mm |
| Guide rail option Minimum Width | 425mm |
| Free standing Height | 586mm |
| Free standing Maximum Width | 550mm |
| Free standing Minimum Width | 425mm |
| Weight | 60kg |
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
