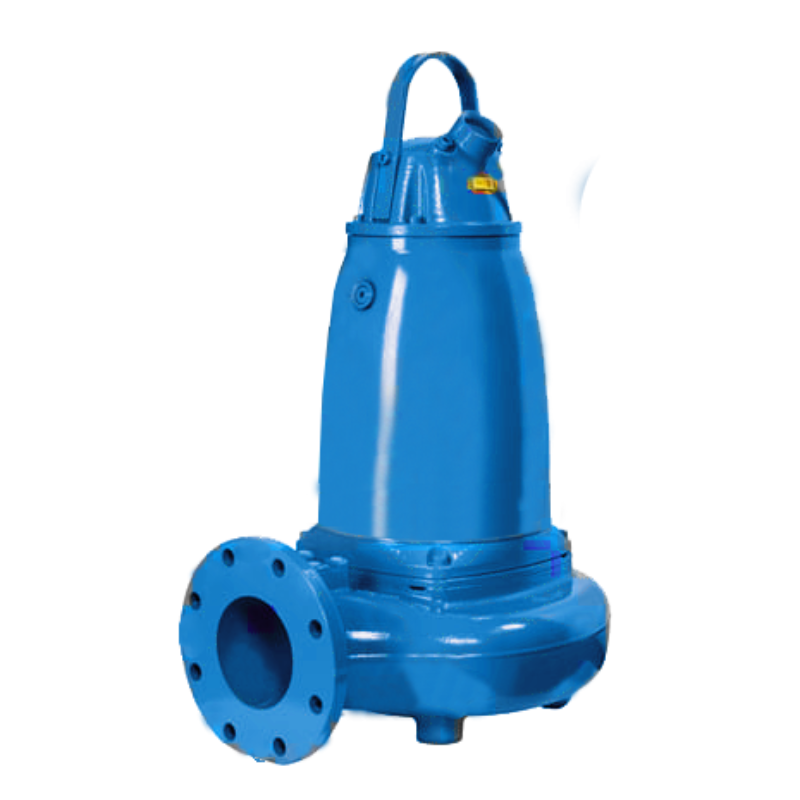

The NX3153 SH is a hard-wearing 15kW electric submersible wastewater pump designed for use on high head applications where larger flows are required. Specifically manufactured to suit the needs of utility companies and contractors, this compact unit delivers heads of up to 59 metres and maximum flows of 44 litres per second. Our NX3153 SH units feature technologically advanced components for optimum pumping performance, with 6” suction inlets allowing large volumes to be handled when in operation. This pump can be connected to all guide rail adaptions, with its compact chassis simplifying installation on projects where space is limited.
Feature
| Model | NX3153 SH |
|---|---|
| Motor type (V) | 415 (3-phase) 50Hz |
| Motor rating (kW) | 15 |
| Running current (A) | 27 |
| Running speed | 2,910 rpm |
| Discharge port (mm) | 100 |
| Suction inlet port (mm) | 150 |
| EX rated | Yes |
| Cooling jacket | Yes |
| Weight (kg) | 237 |
| Dimensions (mm) | 1,110 x 660 |
