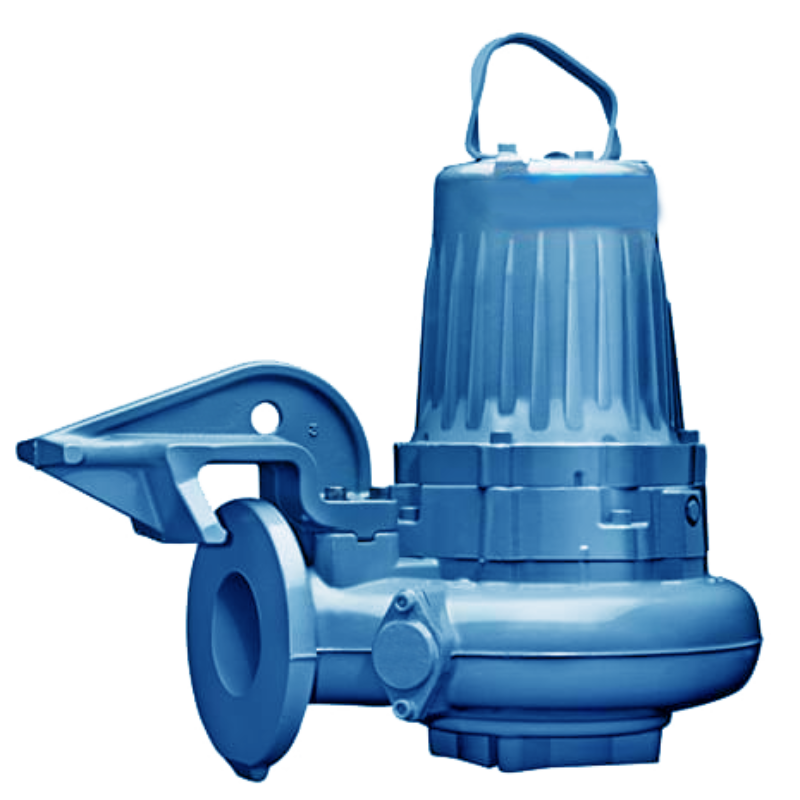

NX3102 SH submersible wastewater pump

NX3102 SH submersible wastewater pump

The NX3102 SH is a robust 4.2kW electric submersible wastewater pump that has been manufactured for medium head applications and specifically tailored to the requirements of utility companies and contractors. This small, compact model delivers heads of up to 30 metres and maximum flows of 30 litres per second, requiring 4” hose on the suction side and 3” hose on the discharge. Our NX3102 SH units incorporate the industry’s latest technology to guarantee optimum performance levels. This pump can be connected to all guide rail adaptions, with its compact chassis enabling seamless deployment in tight areas where space is at a premium.

Key Features

Feature

Feature

[acf_repeater]

Product Specification

Additional information

Model	NX3102 SH
Motor type (V)	400 (3-phase) 50Hz
Motor rating (kW)	4.2
Running current (A)	8.1
Running speed	2,915 rpm
Discharge port (mm)	80
Suction inlet port (mm)	100
EX rated	Yes
Cooling jacket	No
Weight (kg)	98
Dimensions (mm)	610 x 460

Downloads

Accessories

PUMP STAND
CLAWS FOR SLIDE RAIL INSTALLATION
20 METRE CABLE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utilities
General maintenance
High head applications
