Immediate Despatch

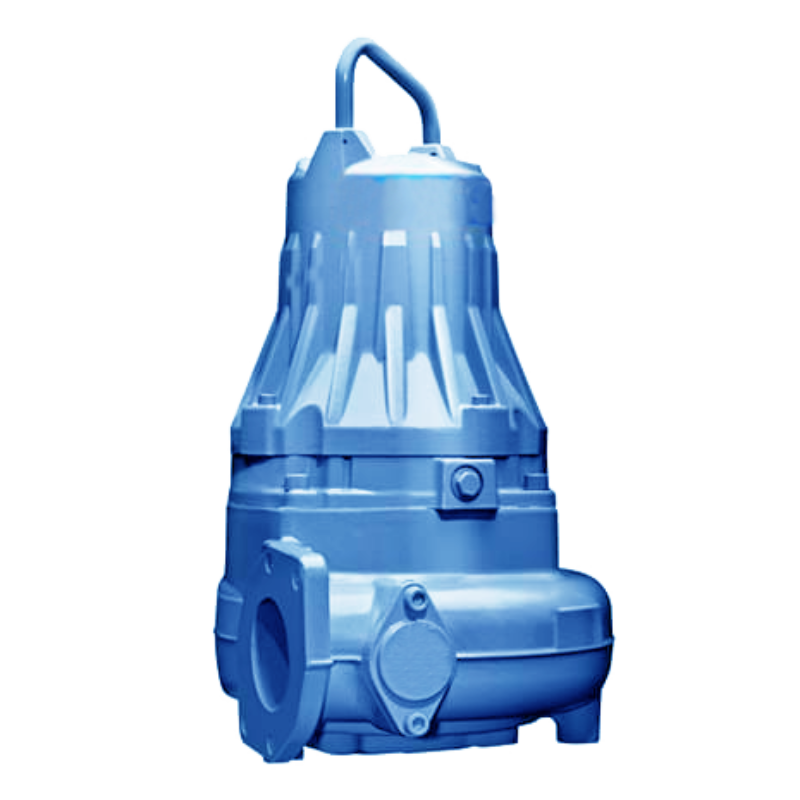

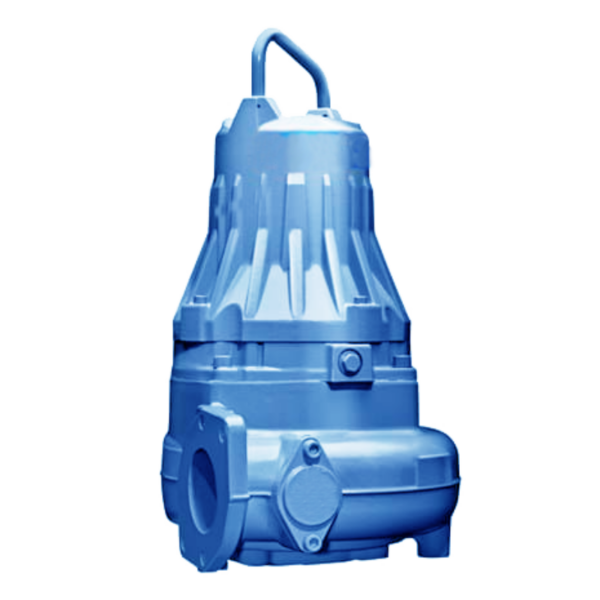

The robust NX3085 SH electric submersible wastewater pump is designed for medium head applications and specifically tailored to the needs of water and utility companies and contractors. This small 2.4kW wastewater submersibles delivers heads of up to 25 metres and maximum flows of 20 litres per second. Our NX3085 SH models incorporate the latest technology to guarantee optimum performance levels. This unit is compatible with all guide rail adaptions, with its compact chassis enabling seamless deployment in challenging, tight spaces.
Feature
| Model | NX3085 SH |
|---|---|
| Motor type (V) | 400 (3-phase) 50Hz |
| Motor rating (kW) | 2.4 |
| Running current (A) | 4.8 |
| Running speed | 2,870 rpm |
| Discharge port (mm) | 80 |
| Suction inlet port (mm) | 100 |
| EX rated | Yes |
| Cooling jacket | No |
| Weight (kg) | 76 |
| Dimensions (mm) | 500 x 440 |
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
