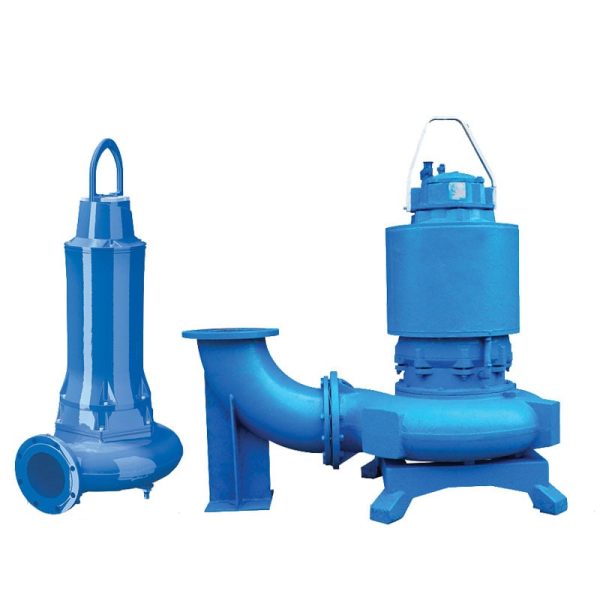

AFPK2073 / KE304 Electric Submersible Wastewater Pumps

AFPK2073 / KE304 Electric Submersible Wastewater Pumps

These large 12” electric submersible wastewater pumps provide clients with a large solids handling capability that can operate at heads of up to 34 metres. Delivering maximum flows of up to 400 litres per second, the pumps have been designed for use in a broad spectrum of environments including commercial, industrial and infrastructural. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

Key Features

Feature

Feature

[acf_repeater]

Product Specification

Additional information

Model	KE304 / AFPK2073
Motor type	415V (3-Phase) 50Hz
Motor rating	50kw / 55kw
Running current	91A / 94A
Running speed	980 rpm / 1450 rpm
Discharge port	300mm / 200mm
Suction inlet port	300mm / 200mm
Maximum solids	100 x 150mm / 100mm
EX Rated	No / Yes
Cooling jacket	Yes
Guide rail option	1630 x 1100mm / 1490 x 775mm
Transportable option	1850 x 1730mm / 1520 x 1235mm
Weight	1070kg / 940kg

Downloads

Accessories

VARIABLE PANEL 18KW TO 56KW
12″ W/A SUCTION HOSE X 6MTS
12″ 10FT STEEL PIPE
12″ FLANGED HIGH PRESSURE HOSE X 6MTS
12″ 45* BAUER BEND
12″ 90* BAUER BEND
12″ FLANGED 45* BEND
12″ FLANGED 90* BEND
12″ GATEVALVE
12″ NON-RETURN VALVE

Environments

Contrabloc Impeller provides blockage-free operation
Double mechanical seals for maximum abrasive resistance
Premium Efficiency IE3 motor for reduce energy consumption
Simple design allows minimal service and maintenance
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
