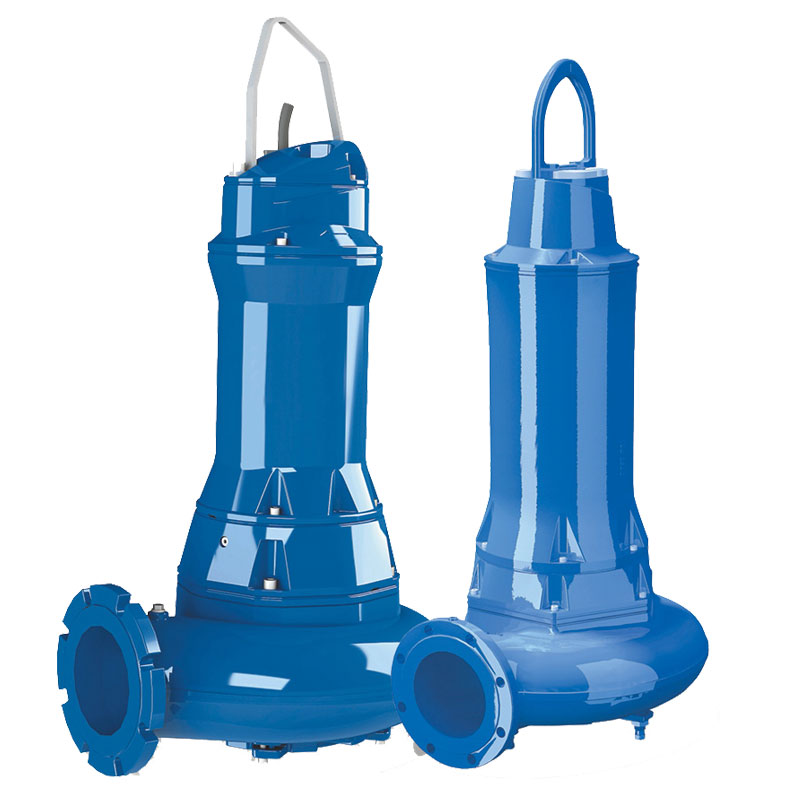

AFPK2045 / XFP200G Electric Submersible Wastewater Pumps

AFPK2045 / XFP200G Electric Submersible Wastewater Pumps

These large 8” electric submersible wastewater pumps deliver medium head and large flow performance, offering flows of up to 165 litres per second and heads of up to 30 metres. With a solids handling capability of 125mm, these pumps are ideally suited to the municipal, utility and industrial sectors. They can be adapted for guide rail applications and used in conjunction with automatic control panels which guarantee the unit will only run when required to conserve energy.

Key Features

Feature

Feature

[acf_repeater]

Product Specification

Additional information

Model	AFPK2045 / XFP200G
Motor type	415V (3-Phase) 50Hz
Motor rating	4kw / 22kw
Running current	27.7A / 42.6A
Running speed	1450 rpm / 1450 rpm
Discharge port	200mm
Suction inlet port	200mm
Maximum solids	125 x 100mm / 125mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option	1195 x 690mm / 1388 x 690mm
Weight (kg)	375kg / 397kg
Transportable option	1390 x 1210mm / 1541 x 1150mm
Weight	425kg / 460kg

Downloads

Accessories

VARIABLESOFT START PANEL 22Kw
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON-RETURN VALVE
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Manufacturing and industry
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
