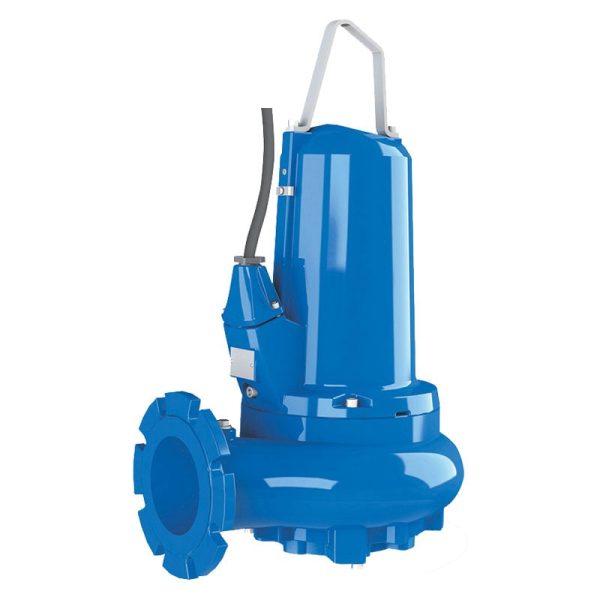

The AFPK1043 is a cast-iron electric submersible wastewater pump capable of handling solids of up to 55 millimetres in diameter. Offering a maximum flow of 35 litres per second and maximum head of 35 metres, the unit is trusted by utility and water companies alike and is ideally suited for temporarily replacing permanent solutions on customer sites. Fitted with an efficient 7kW motor, the AFPK1043 is capable of handling sustained flows in a multitude of environments.
Feature
| Model | AFPK1043 |
|---|---|
| Motor type | 415V (3-Phase) 50Hz |
| Motor rating | 7kW |
| Running current | 13.6A |
| Running speed | 2900 rpm |
| Discharge port | 100mm |
| Suction inlet port | 100mm |
| Maximum solids | 55mm |
| Ex Rated | No |
| Cooling jacket | Yes |
| Guided rail option | 725 x 455mm |
| Weight | 125kg |
| Transportable option | 855 x 720mm |
