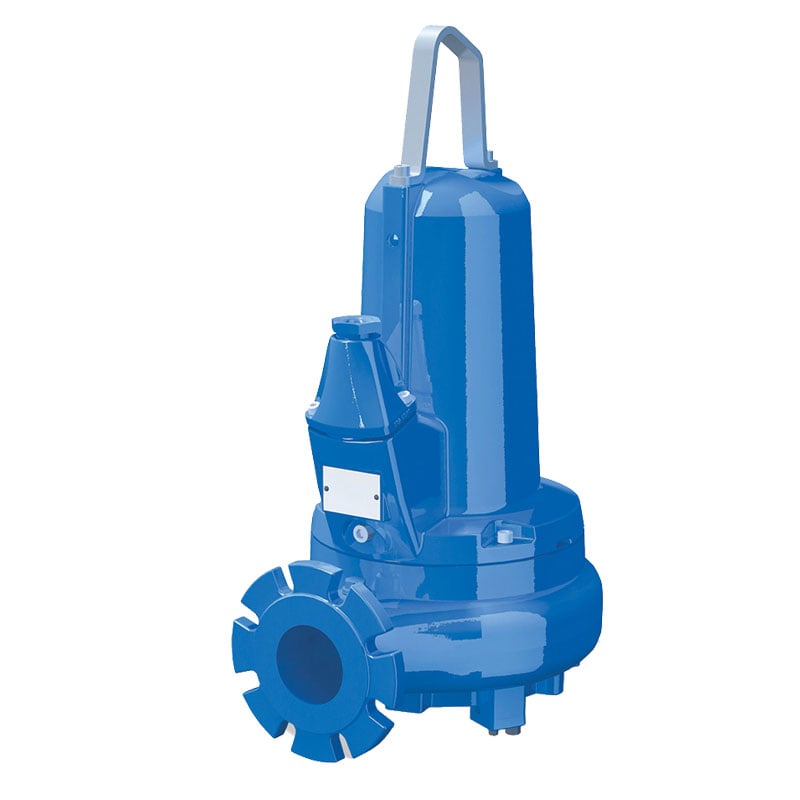

The robust AFPK1042 electric submersible pump is designed for providing reliable performance within small pumping stations and utility networks, as well as most other wastewater applications. These small wastewater submersibles come in 6kW and 4kW versions and deliver heads of up to 19 metres and maximum flows of 60 litres per second. Our AFPK1042 models are ideal suited to dealing with sustained flows but also feature a cooling jacket to stop the motor overheating when the pump is not fully submerged.
Feature
| Model | AFPK1042 |
|---|---|
| Motor type | 415V (3-Phase) 50Hz |
| Motor rating | kW / 6kW |
| Running current | 8.8A / 12.5A |
| Running speed | 1450 rpm |
| Discharge port | 100mm |
| Suction inlet port | 100mm |
| Maximum solids | 100mm |
| Cooling jacket | Yes |
| Ex Rated | Yes |
| Guided rail option | 735 x 455mm |
| Transportable option | 870 x 750mm |
| Weight | 141kg / 144kg |
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
