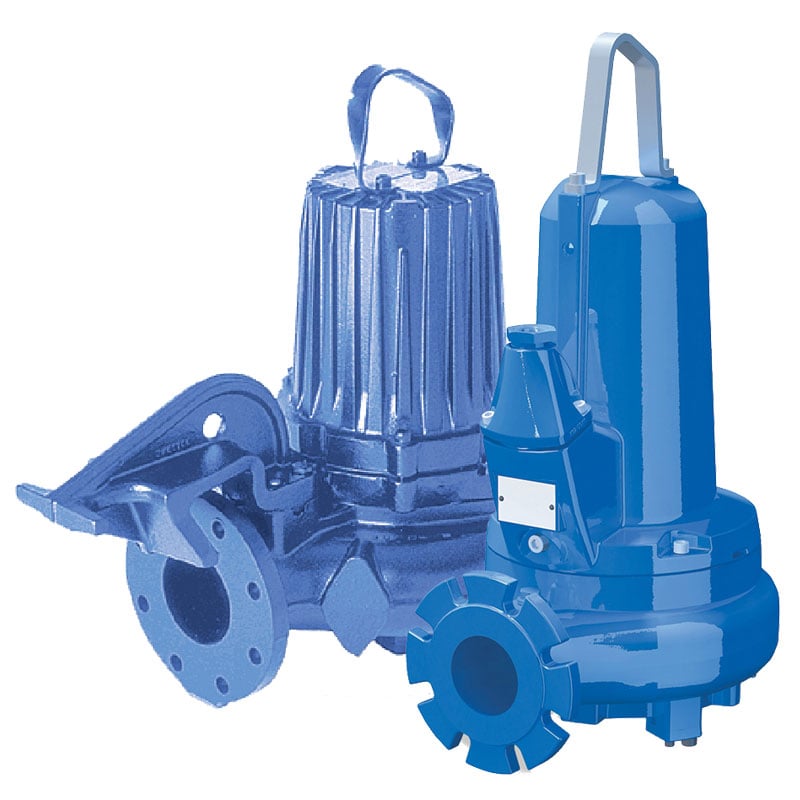

AFPK0832 and CS3102 Electric Submersible Wastewater pumps

AFPK0832 and CS3102 Electric Submersible Wastewater pumps

These durable electric submersible wastewater pumps offer a smooth-running pumping solution designed for a range of applications within the water, utility and industrial sectors. Capable of delivering maximum flows of up to 40 litres per second and a head of up to 27 metres, these small-sized electric submersible pumps are known for their reliability and can be adapted to any guide rail arrangement you have in place. The AFPK0832 models are well-suited to medium head projects while the CS3102 units are best for scenarios where higher flows are required.

Key Features

Feature

Feature

[acf_repeater]

Product Specification

Additional information

Model	AFPK0832 / CS3102
Motor type	415V (3-Phase) 50Hz
Motor rating	7kW / 3kW
Running current	13.6A / 6.7A
Running speed	2900 rpm / 1450 rpm
Discharge port	80mm / 100mm
Suction inlet port	80mm / 100mm
Maximum solids	80mm / 76mm
EX Rated	Yes / No
Cooling jacket	Yes / No
Guide rail option	700 x425 / 600 x 465
Transportale option	870 x650 / 720 x 620
Weight	139kg / 131kg

Downloads

Accessories

VARIABLE D.O.L.PANEL 1KW TO 15KW
3”/4″ X 3M W/A BAUER HOSE
3”/4″ 20FT W/A SUCTION HOSE BAUER
3”/4″ 20FT POLYTUBE
3”/4″ X 6M HELIFLEX PVC BAUER
3”/4″ LAYFLAT HOSE PER METRE
3”/4″ BLUE LAYFLAT X 25M CW BAUERS
3”/4″ X 6MTR STEEL BAUER PIPE
3”/4″ 45* BAUER BEND
3”4″ 90* BEND
3”/4″ GATEVALVE
3”/4″ NON RETURN VALVE

Environments

Building and construction
Emergency sewage pumping
Bypass and over-pumping
Wastewater treatment sites
Flood restoration
Manufacturing and industry
Industrial processes
Property maintenance
Agriculture
Utility industries
