Immediate Despatch

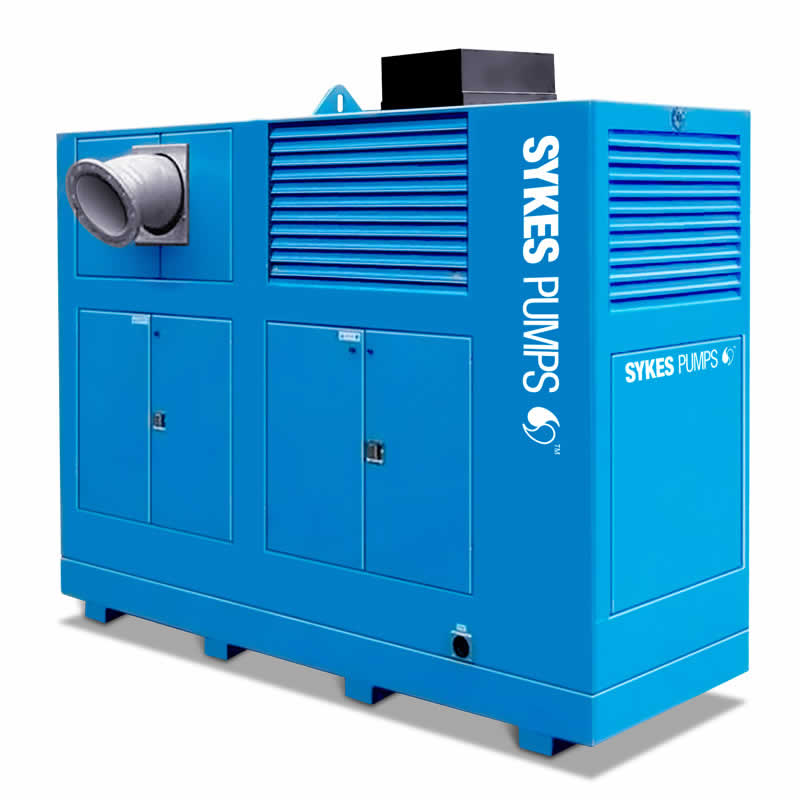

The Super Wispaset 300 is a 12” silenced pump that is ideally suited to high flow lower head applications. This model can handle flows of up to 415 litres per second and combines this impressive pumping performance with excellent solids handling capabilities. The Super Wispaset 300 is a highly efficient unit and features a smaller engine, making it extremely cost-efficient. This pump is perfect for water authorities and utilities companies while hours of unattended operation enable continuous functionality without engineers on site.
Feature
| Performance | Max head:- 18 m [br] Max flow:- 415 l/s [br] Max solid:- 70 mm |
|---|---|
| Weight | 3913 kg with fuel [br] 3500 kg without fuel |
| Dimensions (L x W x H) | 3300 x 1180 x 2700 mm |
| Noise level | @ 10m = 66 dBA |
| Fuel capacity | 480 litres. Max 24 hours |
| Pipe Connections | Suction flange:- 12" DN 300 PN 10 [br] Discharge flange:- 12" DN 300 PN 10 Optional Bauer Couplings |
| Fuel Consumption | Full load @ 1800 rpm:- 14.9 litres/hour |
| Energy Efficient duty point | Fuel Consumption @ 1500 rpm:- 13.6 litres/hour |
12″ W/A SUCTION HOSE X 6MTS
12″ 10FT STEEL PIPE
12″ FLANGED HIGH PRESSURE HOSE X 6MTS
12″ 45* BAUER BEND
12″ 90* BAUER BEND
12″ FLANGED 45* BEND
12″ FLANGED 90* BEND
12″ GATEVALVE
12″ NON RETURN VALVE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL
Clean and dirty water transfer
Emergency sewer repairs
Sludge
Utilities
Light slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Wastewater
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Oil
Full load @ 1800 rpm:- 1.99 litres/hour
Fuel Consumption @ 1500 rpm:- 1.4 litres/hour
Oil
Full load @ 1800 rpm:- 6 litres/hour
Fuel Consumption @ 1500 rpm:- 3.98 litres/hour
Oil
Full load @ 1800 rpm:- 17 litres/hour
Fuel Consumption @ 1500 rpm:- 7.3 litres/hour
Oil
Full load @ 1800 rpm:- 5 litres/hour
Fuel Consumption @ 1500 rpm:- 2.25 litres/hour
Oil
Full load @ 1800 rpm:- 9.8 litres/hour
Fuel Consumption @ 1500 rpm:- 4.1 litres/hour
Oil
Full load @ 1,800 rpm:- 8.5 litres/hour
Fuel Consumption @ 1,500 rpm:- 4.1 litres/hour
