Immediate Despatch

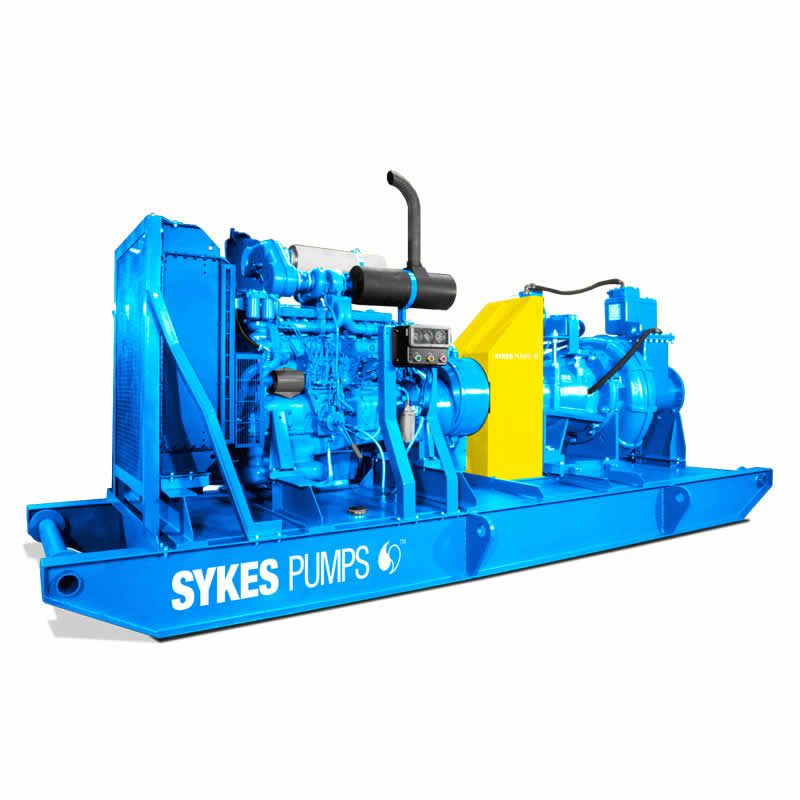

The UVO 200/150F (D90) is a hard iron pump intended for the most arduous high head duties and combines impressive pumping performance with sustained high efficiency and total reliability. All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Giving a maximum head of 135 metres and flows of up to 375 litres per second, the UVO 200/150F is driven by an industry leading diesel engine that meets all EU emission control standards. This unit requires an independent fuel tank and comes on a skid mounted chassis to simplify the unloading and installation process.
Feature
| Performance | Max head:- 135 m [br] Max flow:- 375 l/s [br] Max solid:- 60 mm |
|---|---|
| Weight | 8680 kg with fuel [br] 6570 kg without fuel |
| Dimensions (L x W x H) | 5330 x 2385 x 2167 mm |
| Fuel capacity | Tank size on application, separate bunded tanks available. |
| Pipe Connections | Suction:- 8" Table D [br] Discharge:- 6" Table D [br] Option Bauer Couplings |
| Fuel Consumption | Full load @ 1600 rpm:- 111 litres/hour |
| Energy Efficient duty point | Fuel Consumption @ 1500 rpm:- 92.5 litres/hour |
8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ FLANGED NP16 90* BEND
6″ FLANGED NP16 GATEVALVE
6″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries
Construction
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Electric
70 ㎥/hr max
900 kg (Gross)
Oil
Full load @ 1800 rpm:- 28 litres/hour
Fuel Consumption @ 1500 rpm:- 16.8 litres/hour
Oil
Full load @ 1800 rpm:- 26.5 litres/hour
Fuel Consumption @ 1800 rpm:- 21.9 litres/hour
Oil
Full load @ 2800 rpm:- 6.27 litres/hour
Fuel Consumption @ 2500 rpm:- 4.08 litres/hour
Oil
Full load @ 1200 rpm:- 20.47 litres/hour
Fuel Consumption @ 1200 rpm:- 14 litres/hour
Oil
Full load @ 2800 rpm:- 10.8 litres/hour
Fuel Consumption @ 2500 rpm:- 7.7 litres/hour
Oil
Full load @ 1800 rpm:- 99.9 litres/hour
Fuel Consumption @ 1600 rpm:- 72.67 litres/hour
Oil
Full load @ 1800 rpm:- 71.4 litres/hour
Fuel Consumption @ 1500 rpm:- 26 litres/hour
