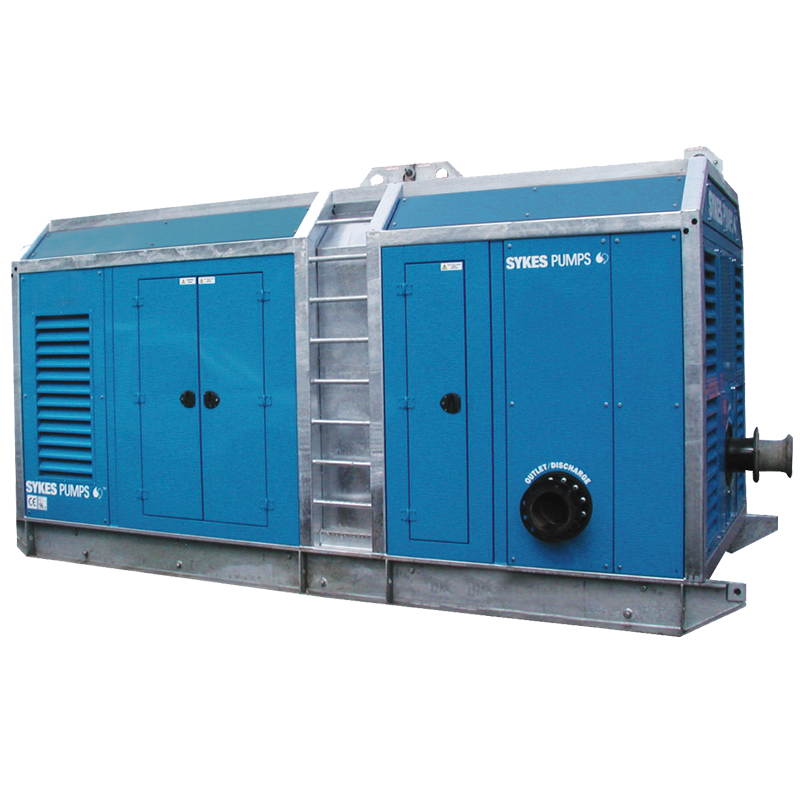

The UVO 200/150F (D90) silenced medium & high head pump is a contained hard iron unit designed for use in scenarios where high heads are required. This pump can operate at heads of up to 135 metres and deliver maximum flows of 375 litres per second, making it ideal for high capacity pumping applications. The UVO 200/150F (D90) silenced unit has built-in access points to simplify maintenance, while its high chrome iron alloy components provide sturdy resistance against abrasion and corrosion.
Feature
| Performance | Max head:- 135 m [br] Max flow:- 375 l/s [br] Max solid:- 60 mm |
|---|---|
| Weight | 9600 kg |
| Dimensions (L x W x H) | 5400 x 2200 x 2570 mm |
| Noise level | @ 7m = 71 dBA |
| Pipe Connections | Suction:- 8" Table D [br] Discharge:- 8" Table D [br] Optional Bauer Couplings |
| Fuel Consumption | Full load @ 1600 rpm:- 106 litres/hour |
| Energy Efficient duty point | Fuel Consumption @ 1500 rpm:- 92.5 litres/hour |
8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
8″ 10FT STEEL PIPE
8″ 20FT STEEL PIPE
8″ FLANGED NP16 90* BEND
8″ FLANGED NP16 GATEVALVE
8″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
8″ 10FT STEEL PIPE
8″ 20FT STEEL PIPE
8″ FLANGED NP16 90* BEND
8″ FLANGED NP16 GATEVALVE
8″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
Clean and dirty water
Pipeline filling
Heavy Sludge
Pipeline boosting
Abrasive Slurry
Hydraulic sluicing
Pit dewatering
Quarries
Tailing deposits
Open cast mines
Slurry transfer
Construction
Ash handling
Waste water
Water boosting
