Immediate Despatch

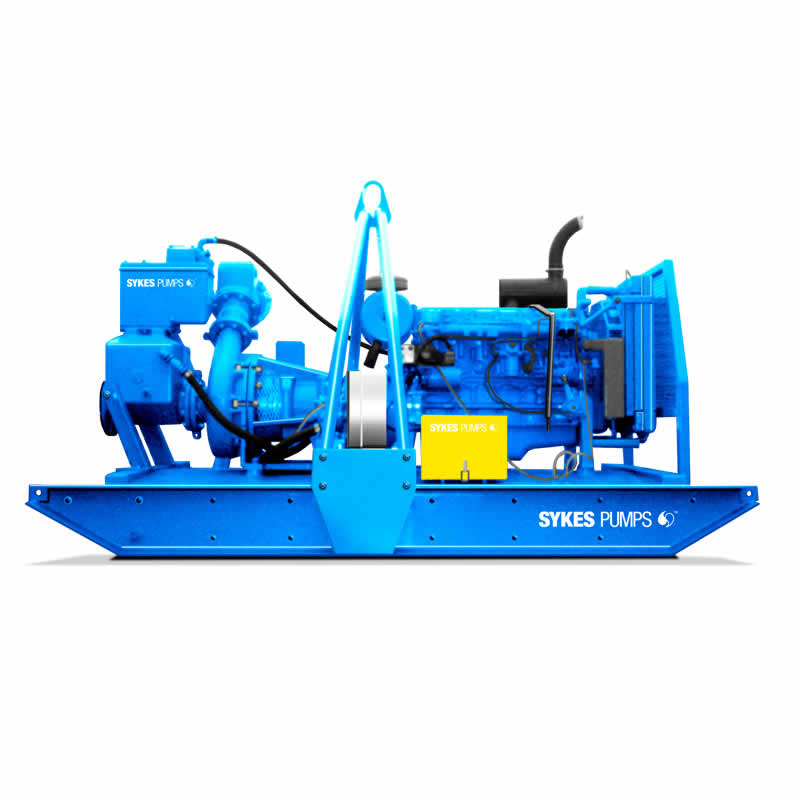

The UVO 150/100E is a hard iron pump specifically designed for the most arduous duties and has a unique combination of features that provide impressive performance, sustained high efficiency and total reliability. All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Producing a maximum head of 93 metres and flows of up to 120 litres per second, the UVO 150/100E is driven by an efficient diesel engine that meets all EU emission control standards.
Feature
| Performance | Max head:- 93 m [br] Max flow:- 120 l/s [br] Max solid:- 38 mm |
|---|---|
| Weight | 3750 kg with fuel [br] 3400 kg without fuel |
| Dimensions (L x W x H) | 3505 x 1608 x 1977 mm |
| Fuel capacity | Various integral fuel tanks |
| Pipe Connections | Suction:- 6" Table D [br] Discharge:- 4" Table D Option Bauer Couplings |
| Fuel Consumption | Full load @ 1800 rpm:- 30 litres/hour |
| Energy Efficient duty point | Fuel Consumption @ 1500 rpm:- 18.6 litres/hour |
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
4″ FLANGED HIGH PRESSURE HOSE X 6MTS
4″ X 6MTR STEEL BAUER PIPE
4″ FLANGED 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries
