Immediate Despatch

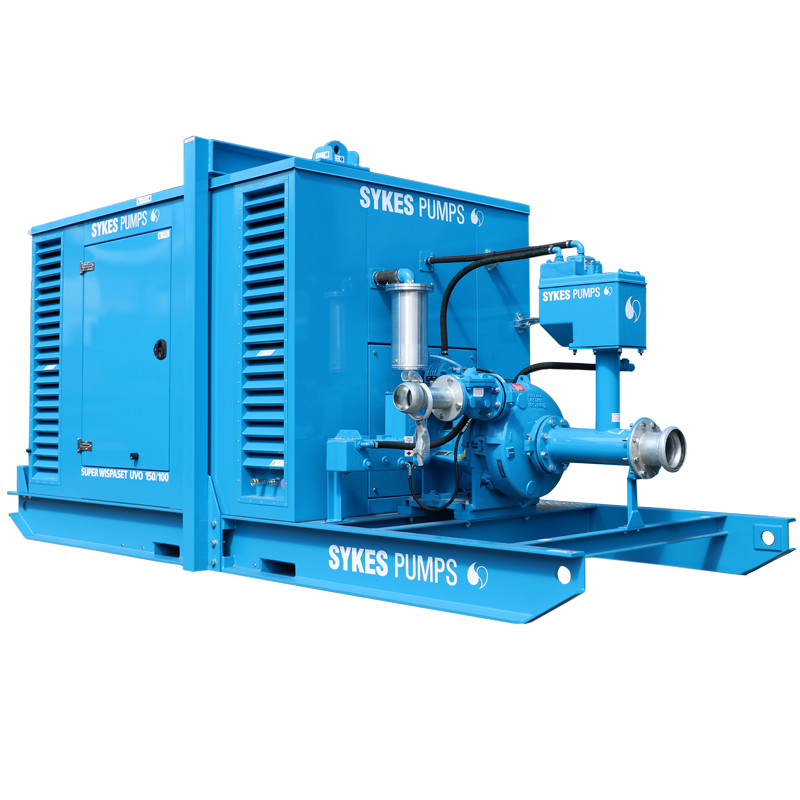

The Sykes Super Wispaset UVO 150/100 is a super silenced high-performance pump specifically designed for use on arduous, high head noise-sensitive applications. The pump runs on an innovative Tier 4-compliant Volvo TAD870VE engine which dramatically reduces emissions whilst meeting the latest European regulations. This market-leading product is contained within a sound-reducing canopy and has a maximum noise level of 70dBA at 7 metres. An average fuel consumption of just 16.8 litres an hour renders the Super Wispaset UVO 150/100 approximately 10% more efficient than comparable pumps on the market. The unit offers maximum heads of 93 metres and a maximum flow of up to 120 litres per second, while a built-in telemetry system provides detailed statistics about the pump’s performance.
Feature
| Performance | Max head:- 93 m [br] Max flow:- 120 l/s [br] Max solid:- 38 mm |
|---|---|
| Weight | 4,100 kg |
| Dimensions (L x W x H) | 4750 x 2120 x 2480 |
| Noise level | @7m= 70 dBA |
| Fuel capacity | Separate bunded tanks available |
| Pipe Connections | Suction:- 6" Table [br] Discharge:- 4" NP16 [br] Discharge:- 4" NP16 Option Bauer Couplings |
| Fuel Consumption | Full load @ 1800 rpm: 28 litres/hour |
| Energy Efficient duty point | Fuel Consumption @1500 rpm: 16.8 litres/hour |
8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ X 6M POLYTUBE BAUER DELIVERY
8″ 20FT STEEL PIPE
8″ 45* BAUER BEND
8″ 90* BEND
8″ GATEVALVE
8″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL
Clean and dirty water
Sludge
Utilities
Slurry
Environmental
Manufacturing and industry
Quarries and mines
Civil engineering
Docks, ports & harbours
Power stations
Refineries
Tunnelling
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Electric
70 ㎥/hr max
900 kg (Gross)
Oil
Full Load @ 2,800 rpm:- 9 litres/hour
Fuel consumption @ 2,500 rpm:- 6.2 litres/hour
Oil
Full load @ 1800 rpm:- 26.5 litres/hour
Fuel Consumption @ 1800 rpm:- 21.9 litres/hour
Oil
Full load @ 1200 rpm:- 20.47 litres/hour
Fuel Consumption @ 1200 rpm:- 14 litres/hour
Oil
Full load @ 1600 rpm:- 106 litres/hour
Fuel Consumption @ 1500 rpm:- 92.5 litres/hour
Oil
Full load @ 1800 rpm:- 71.4 litres/hour
Fuel Consumption @ 1500 rpm:- 26 litres/hour
