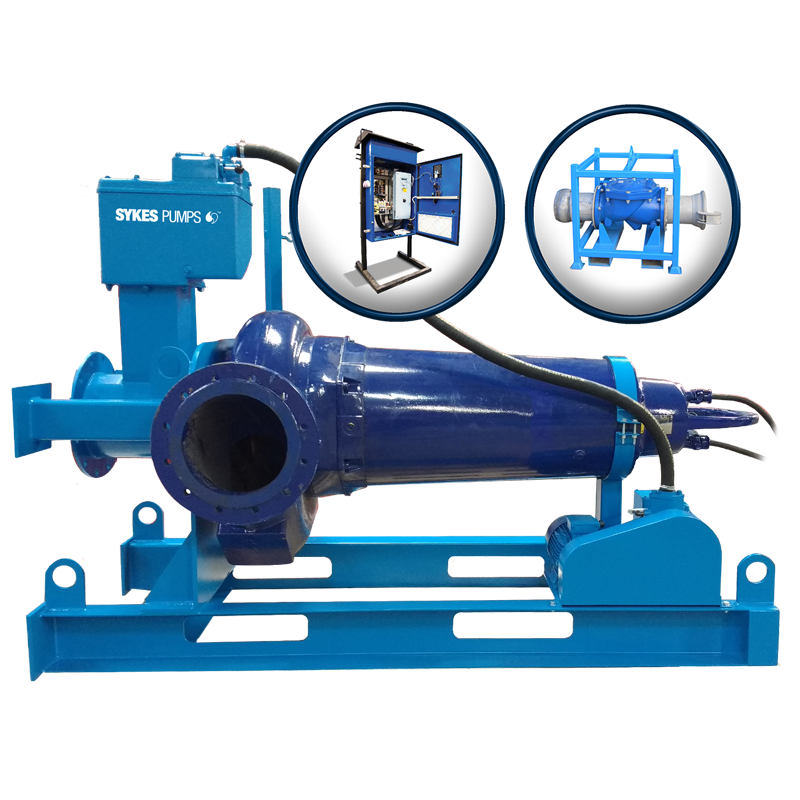

The Sykes UV301M is a prime-assisted surface-mounted capable of delivering flows of up to 450 litres per second with low associated running costs. Requiring only an electrical power source to operate, the UV301M combines economical performance with quiet functionality and a small footprint, making it ideal for situations where space is restricted, or silence is required. Featuring Sykes’ renowned priming gear, this model is perfect for high-volume liquid transportation and can perform at heads of up to 36 metres. Because the UV301M is deployed at surface level, you only need to accommodate a 12” suction hose through an available opening to facilitate pumping. A variable speed panel provides flexibility to suit a range of applications, with this unit specifically designed for sewage over-pumping applications, bulk water transfer, reservoirs, lagoons, flood situations and other environments.
Feature
Motor Type (V) | 415 (3-phase 50Hz) |
---|---|
Motor Rating (kW) | 75 (UV301M) 2.2 (60CFM VP) |
Running Current (Amps) | 140 (UV301M) 4.58 (60CFM VP) |
Running speed | 980 rpm (UV301M) 1450 (60CFM VP) |
Discharge port (mm) | 300 |
Suction inlet port (mm) | 300 |
Maximum solids (mm) | 127 x 110 |
Max Power Input (kW) | 16.7 kW |
EX Rated | Yes |
Cooling jacket | Yes |
Dimensions mm (L x W x H) | 2410 x 1100 x 1800 (UV301M)[br] 2920 X 1620 X 1800 (C/W fittings)[br] 920 x 920 x 980 (NRV)[br] 1768 X 920 X 980 (NRV C/W fittings)[br] 500 x 100 x 2000 (75kW VSD) |
Weight (kg) | 1842 kg (UV301M) [br]1920 kg (C/W fittings)[br]386 kg (NRV)[br]464 KG (NRV C/W fittings) |
