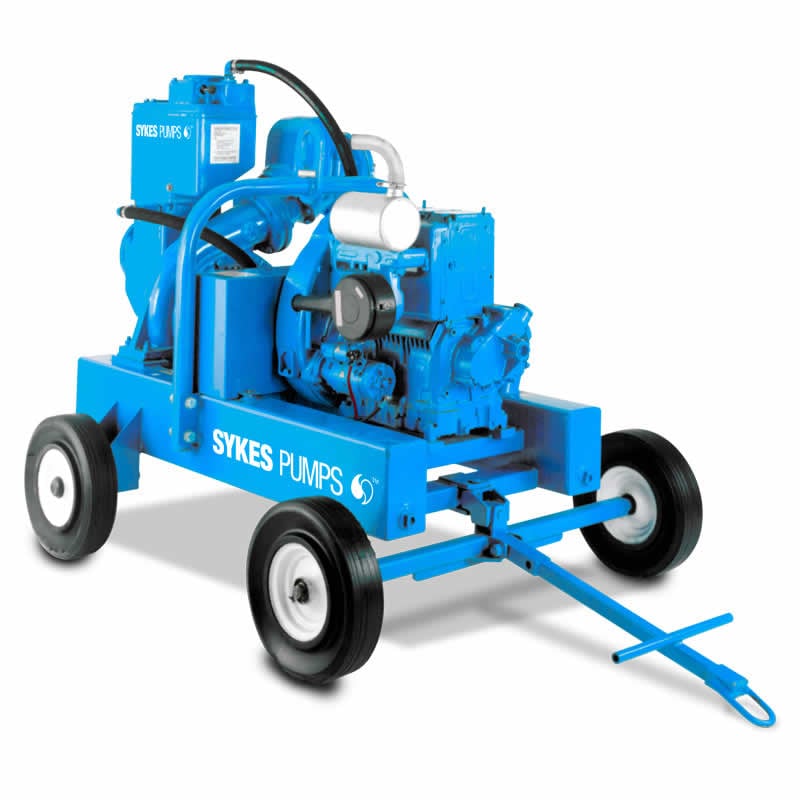

GP 150M General Purpose Pump

The GP 150M is the trusted general purpose industry standard for construction, utilities and civil engineering. The GP 150M incorporates the unique Sykes Univac vacuum system which enables priming and re-priming fully automatically from dry. With a maximum flow capability of 90 litres per second and a maximum head of 38 metres, this particular unit is one of the larger pumps in our general purpose range and thus suitable for a broad range of applications.

Key Features

Feature

[acf_repeater]

Product Specification

Additional information

Performance	Max head:- 38 m [br] Max flow:- 90 l/s [br] Max solid:- 52 m
Weight	1238 kg with fuel [br] 1133 kg without fuel
Dimensions (L x W x H)	2100 x 1500 x 1635 mm Typical length with tow bar 2780
Noise level	@ 1m = 94 – 98 dBA [br] @ 7m = 77 – 82 dBA
Fuel capacity	122 litres. Max 24 hours with cleaning and flushing facilities
Pipe Connections	Suction:- 6" table D [br] Discharge:- 6" table D [br] Bauer couplings option:- 6"
Fuel Consumption	Full load @ 1800 rpm:- 6.27 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm:- 4.08 litres/hour

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
