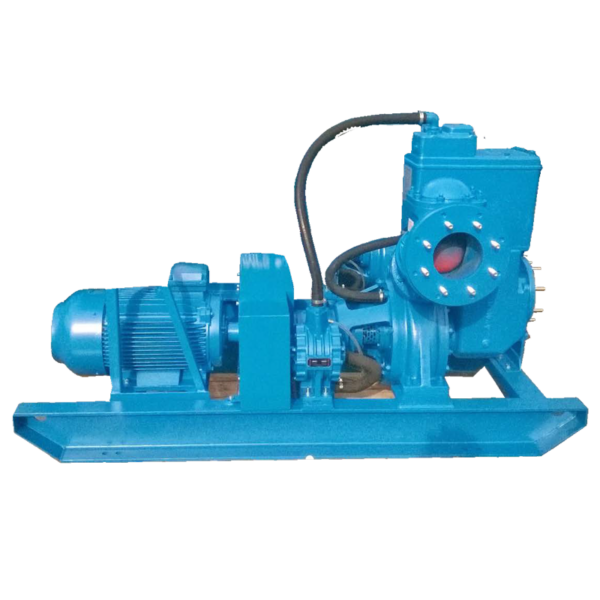

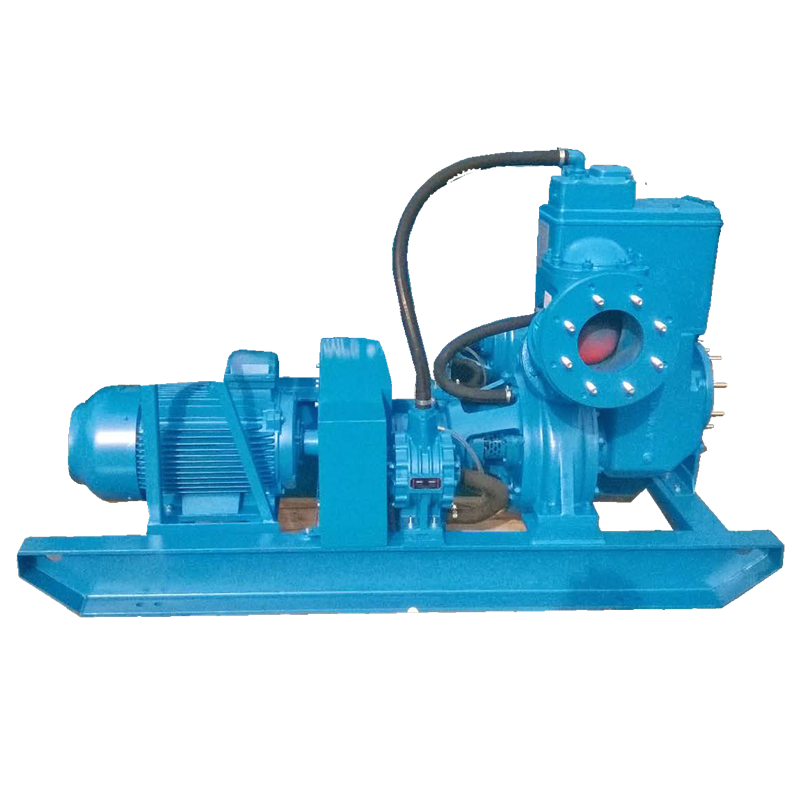

GP150E electric general purpose pump

The GP150E is a market-leading 6” electric general purpose pump that provides clients with a viable alternative to diesel driven units. Incorporating a modern electric motor, this product offers cleaner and quieter pumping while simultaneously helping customers to drastically reduce their carbon footprint. In addition to being ‘greener’ than comparable models available elsewhere, the GP150E requires only connection to a local power supply in order to function. Designed for construction, utilities, civil engineering and over-pumping projects, this lightweight unit can handle flows of up to 80 litres per second and solids of up to 44mm.

Key Features

Feature

[acf_repeater]

Product Specification

Additional information

Performance	Max Head:- 27m [br] Max Flow:- 80 l/sec [br] Max solids:- 52mm
Weight	843kg
Dimensions (LxWxH) mm	2,096 x 850 x 1,285
Noise level	@7m= 68 dBA
Pipe Connections	Suction:- 6" table D [br] Discharge:- 6" table D [br] Bauer couplings option:- 6"
Motor	22kW IE3 motor, 415V 3ph 50HZ

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
