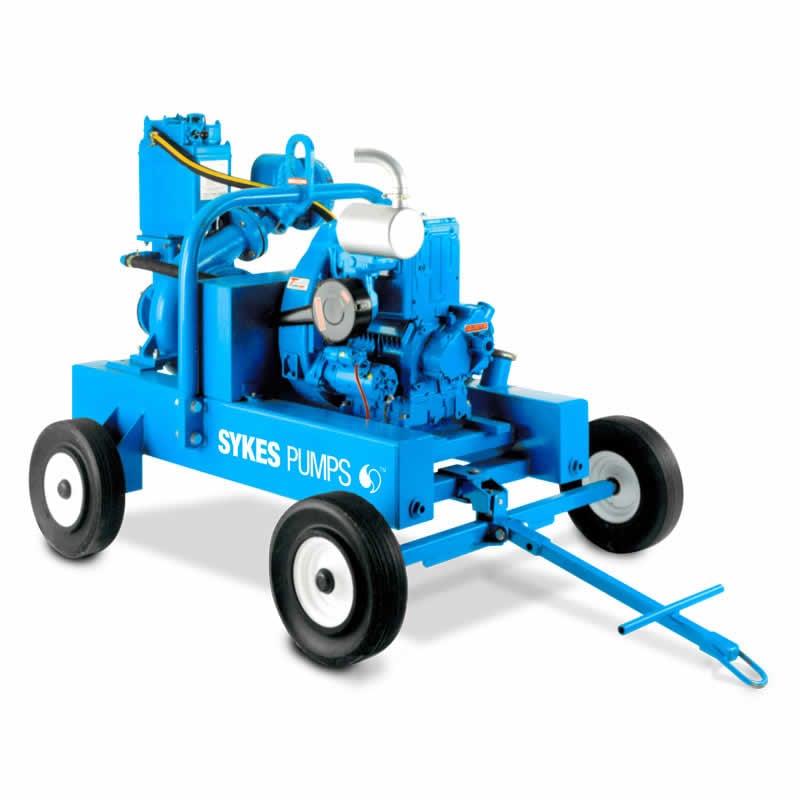

GP 100M General Purpose Pump

The GP 100M is among the most popular general purpose pumps in the hire industry and is a medium-sized unit suitable for a wide range of applications. It’s 4 wheeled site chassis aids manoeuvrability and simplifies deployment, making it perfect for construction, utilities, civil engineering and over-pumping projects. Capable of priming and re-priming automatically from dry, the GP100M can deliver flows of up to 45 litres per second and a maximum head of 31 metres, despite its modest fuel consumption.

Key Features

Feature

[acf_repeater]

Product Specification

Additional information

Performance	Max head:- 31 m [br] Max flow:- 45 l/s [br] Max solid:- 44 mm
Weight	1011 kg with fuel [br] 907 kg without fuel
Dimensions (L x W x H)	1940 x 1450 x 1500 mmTypical length with tow bar 2620
Noise level	@ 1m = 94 – 98 dBA [br] @7m = 77 – 82 dBA
Fuel capacity	69 – 122 litres. Max 24 hours with cleaning and flushing facilities
Pipe Connections	Suction:- 4" table D [br] Discharge:- 4" table D [br] "Bauer couplings option:- 4
Fuel Consumption	Full load @ 1800 rpm:- 3.7 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm:- 2.29 litres/hour

Downloads

Accessories

4″ SPLIT INTAKE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
RETAIL GAS OIL
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
