Immediate Despatch

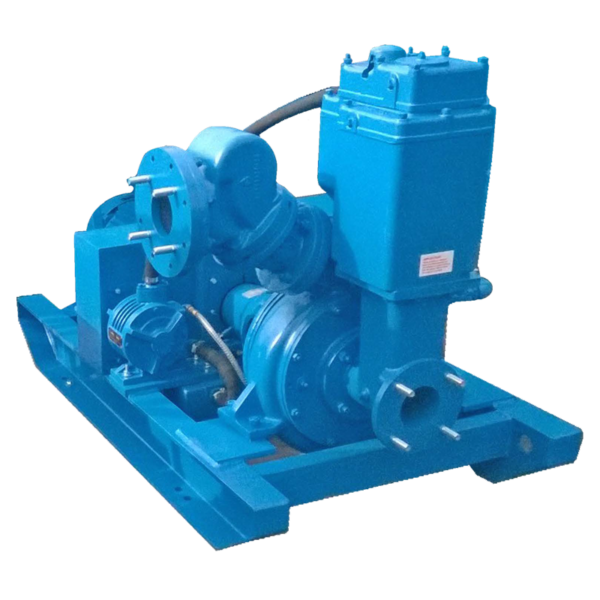

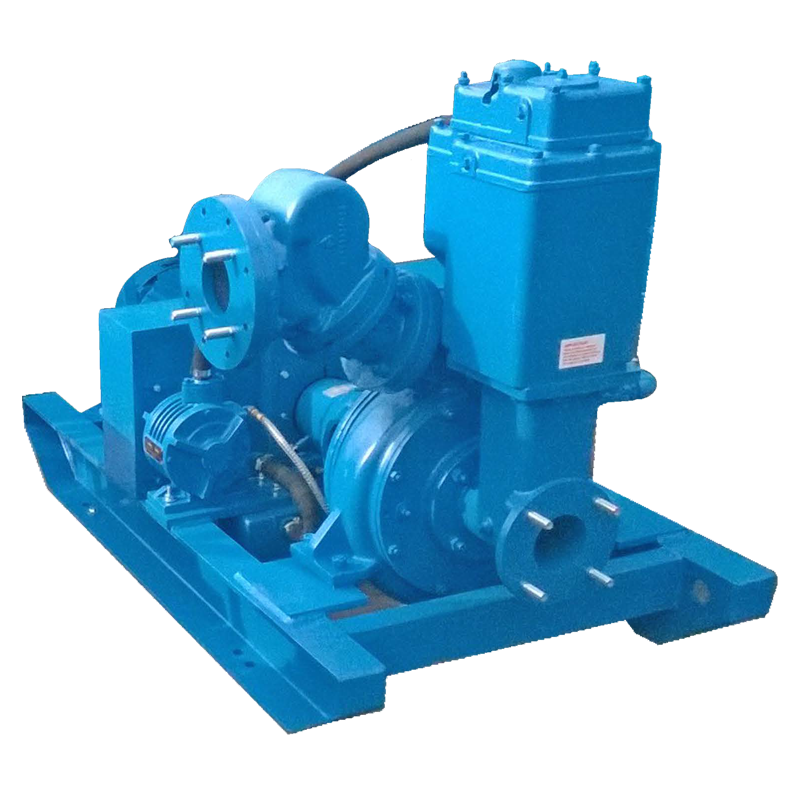

The GP100E is an industry-leading 4” electric general purpose pump that offers clients a practical alternative to diesel driven units. Featuring an electric motor, this product delivers a cleaner and quieter pumping output while simultaneously allowing customers to drastically reduce their carbon footprint. In addition to being ‘greener’ than comparable models available elsewhere, the GP100E offers the advantage of only requiring connection to a local power supply in order to function. Designed for construction, utilities, civil engineering and over-pumping projects, this lightweight unit can handle flows of up to 42 litres per second and solids of up to 44mm.
Feature
| Performance | Max Head:- 21m [br] Max Flow:- 42 l/sec [br] Max Solids:- 44mm |
|---|---|
| Weight | 720kg |
| Dimensions (LxWxH) mm | 1,546 x 850 x 1,135 |
| Noise level | @7m= 68 dBA |
| Pipe Connections | Suction:- 4" table D [br] Discharge:- 4" table D [br] Bauer couplings option:- 6" |
| Motor | 15kW IE3 motor, 415V 3ph 50HZ |
4″ SPLIT INTAKE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
RETAIL GAS OIL
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction projects
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Oil
Full load @ 1800 rpm:- 3.7 litres/hour
Fuel Consumption @ 1500 rpm:- 2.29 litres/hour
Oil
Full load @ 1800 rpm:- 1.9 litres/hour
Fuel Consumption @ 1500 rpm:- duty point:- 0.61 litres/hour
Oil
Full load @ 1800 rpm:- 6.27 litres/hour
Fuel Consumption @ 1500 rpm:- 4.08 litres/hour
Oil
Full load @ 2500 rpm:- 1.4 litres/hour
Fuel Consumption @ 1500 rpm 0.58 litres/hour
Oil
Full load @ 1800 rpm:- 6 litres/hour
Fuel Consumption @ 1500 rpm:- 3.98 litres/hour
