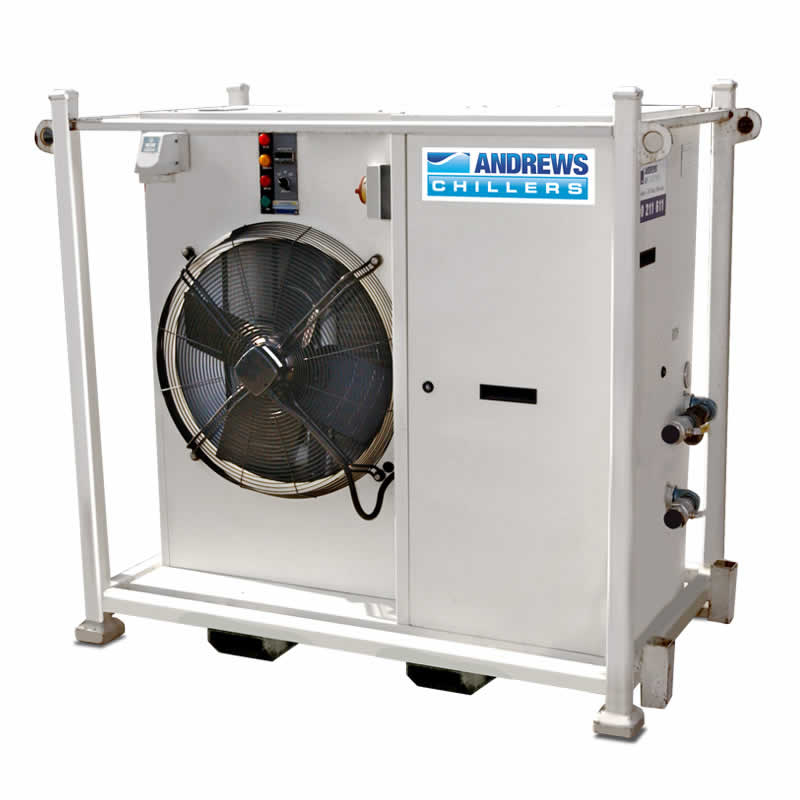

Our 30kW chiller is a compact but highly efficient fluid chiller that has been designed to fit discreetly in any environment. This unit is fully portable, quiet in operation and environmentally friendly. The 30kW chiller is available with a heat pump option, giving users the ability to cool and heat processes and areas. This unit is capable of either connecting directly to your system or to a wide range of Andrews’ air handling units. This particular model can reduce temperatures to as low as -5 ̊C and is a perfect for product storage, marquees and pharmaceutical applications.
Feature
| Nominal cooling duty | 30 kW 102,360 btu |
|---|---|
| Power supply | 415 V 3 ph N+E 50 Hz Run 19 A |
| Noise level (max) | 73 dBA @ 10 metres |
| Weight (kg) | 350 kg |
| Control | Automatic programmer |
| Plug type | BS4343 32 A 5 pin |
| Average power consumption | 5.9 kW/h |
| Generator size | 30kVA |
| Nominal heating duty (HP version) | 30 kW 102,360 btu |
| Water connection | 32mm (1 1/4") Camlock |
| Dimensions (L x W x H) | 1600 x 860 x 1700 mm |
| Nominal water flow | 1.75 l/s |
| Weight | 350 kg |
| Dimensions(L x W x H) | 1,600 x 860 x 1,700 mm |
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
1.25 BORE HOSE PER METER
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER
Product storage
Process cooling
Pharmaceuticals
Disaster recovery
Food and beverages
Marquees
Scheduled chiller maintenance
Events and exhibitions
Agriculture
Manufacturing and industry
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
