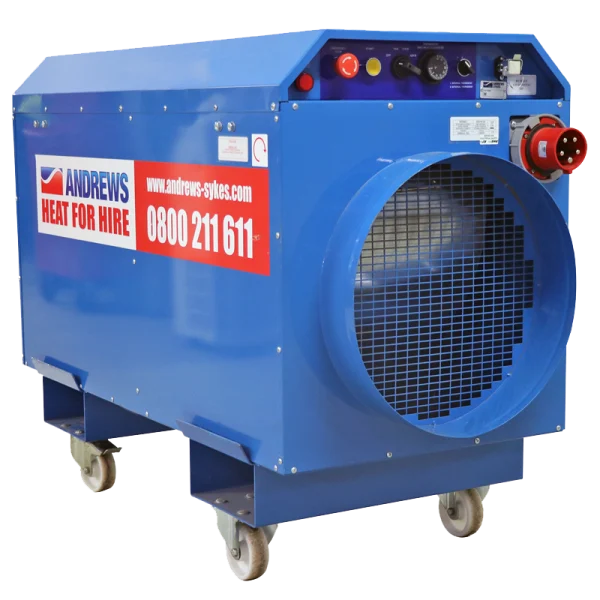

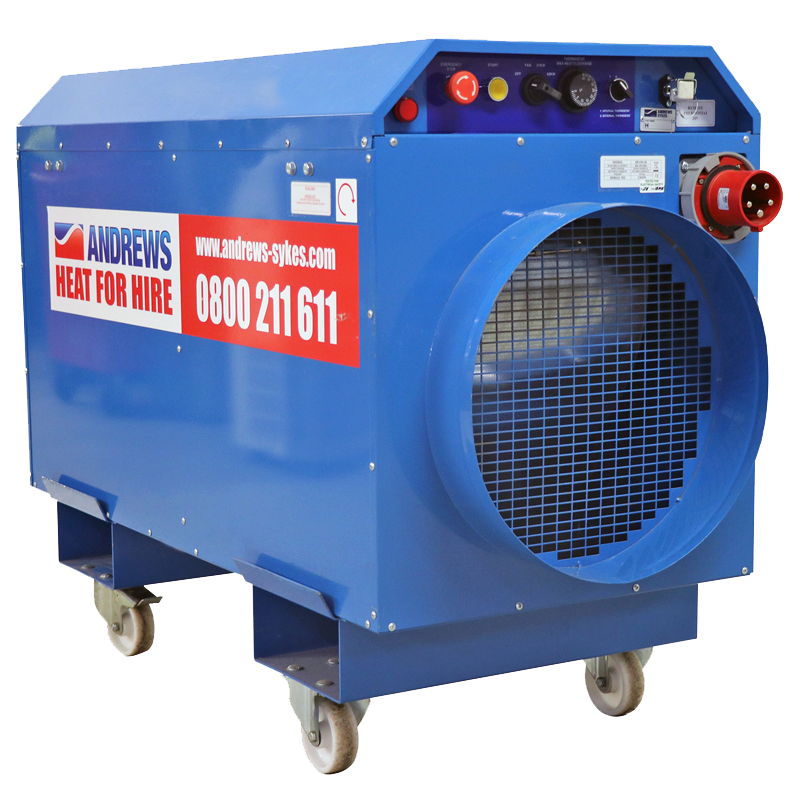

The DE190 is a high capacity electrical heater with three different power settings – 21kW, 42kW and fan only – and is capable of running from a 63amp, 415-volt power supply. It is ideal for heating large industrial spaces of up to 1,200m³ in size. This fully portable fan heater can generate a maximum air flow of 4,500m³/h, underlining its suitability for a broad range of heavy duty environments. The DE190 comes complete with an optional remote thermostat and is an ideal heating source for virtually any setting that requires high capacity fume free warm air. These include manufacturing facilities, building sites and tank drying applications.
Feature
| Nominal heating duty | 42 kW |
|---|---|
| Air flow (max) | 4500 m3/h |
| Typical heated area | 1,200 m3 |
| Power supply | 415 V 3ph N + E 50 Hz Run 52 A |
| Plug type | BS4343 3 ph 5 pin 63 A |
| Generator size | 60 kVA |
| Noise level (max) | 68.7 dBA @ 3 metres |
| Weight | 120 kg |
| Dimensions (L x W x H) | 1,360 x 630 x 950 mm |
| Duct length (max) | 32 metres |
| Duct size | 450 mm |
| Control | Manual (external controls available) |
| Average power consumption | 42 kW/h |
T16 THERMOSTAT C/W 10M CABLE
10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
8M X 450MM DUCTING
DUCT CLIP
DUCT Y 450MM TO 2 X 300MM
8M X 300MM HEATER DUCT (12″”) MAX 32M
300MM COUPLER/CONNECTING COLLAR
Large workshops
Manufacturing facilities
Product storage
Building sites
Tank drying
Agricultural
Temperature control
Industrial units
Ship building
Yacht maintenance
