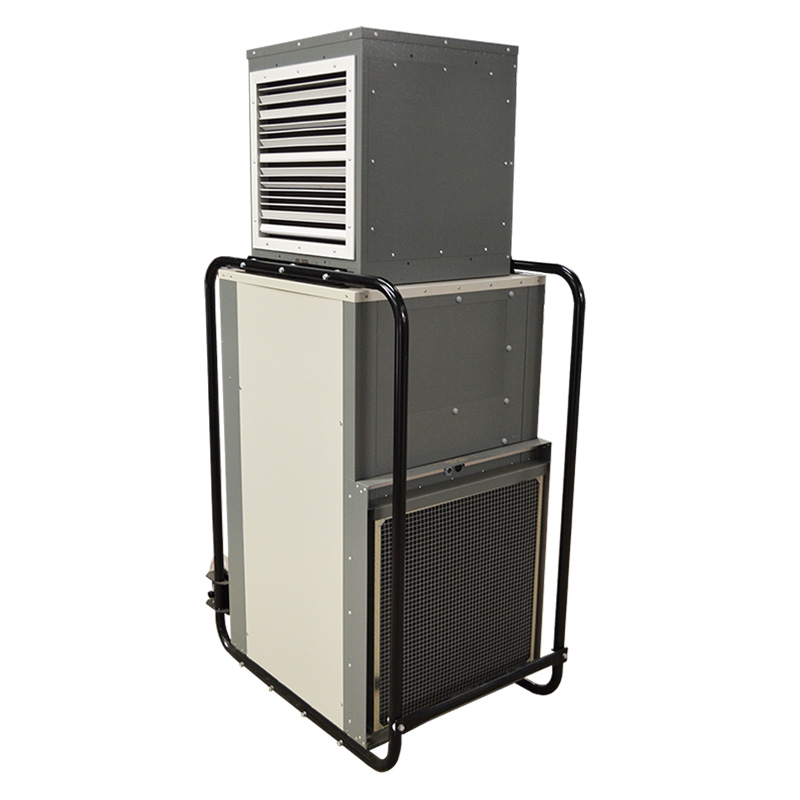

The DH150 refrigerant dehumidifier is a high capacity drying unit that offers a more economical alternative to desiccant dryers. Needing little attention while in operation, the DH150 is capable of drying large applications and requires a 415V power supply in order to function. Consuming just 2.7kW per hour of operation, the DH150 draws air inside which is then passed over a refrigerant coil. This process cools the air below dew point, allowing up to 275 litres of moisture to be extracted every 24 hours. The DH150 model can dry out areas of up to 1,650m³ and control the humidity in areas up to 3,300m³ in size. It is suitable for deployment in a range of environments including warehouses, agricultural facilities, building drying applications and tank drying or pharmaceutical processes.
Feature
Extraction rate (max) | 275 litres/24hr |
---|---|
Nominal extraction rate at 75% RH / 20oC | 150 litres / 24 h |
Air flow (max) | 2,200 m3/h |
Keep dry area (typical) | 3,300 m3 |
Dry out area (typical) | 1,650 m3 |
Power supply | 415 V 3 ph 50 Hz Run 8 A |
Plug type | BS4343 16 A 5 pin |
Noise level (max) | 63.83 dBA @ 1 metre |
Weight | 130 kg |
Dimensions (L x W x H) | 660 x 660 x 1,313 mm |
Control | Manual (Humidistat Option) |
Average power consumption | 2.4 kW/h |
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 4MM DIA
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 4MM DIA
CONDENSATE HOSE
REMOTE HUMIDISTAT
AIR DISCHARGE DIRECTIONAL HOOD
Building drying
Industrial processes
Electrical switch rooms
Agriculture
Warehouses
Pharmaceutical processes
Construction sites
Product storage
