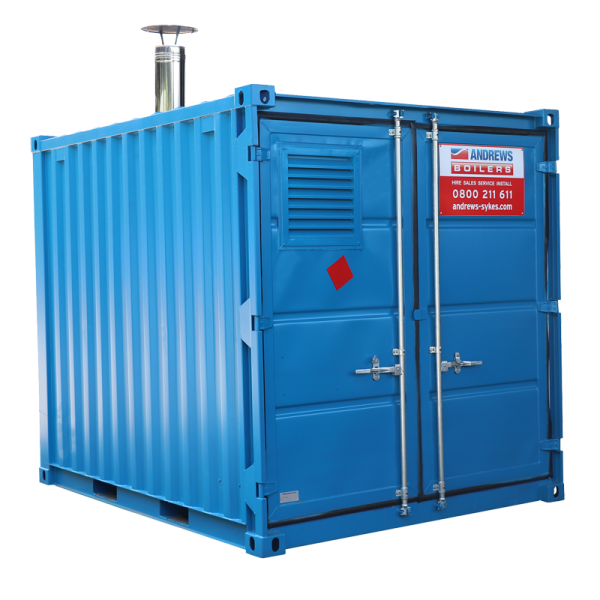

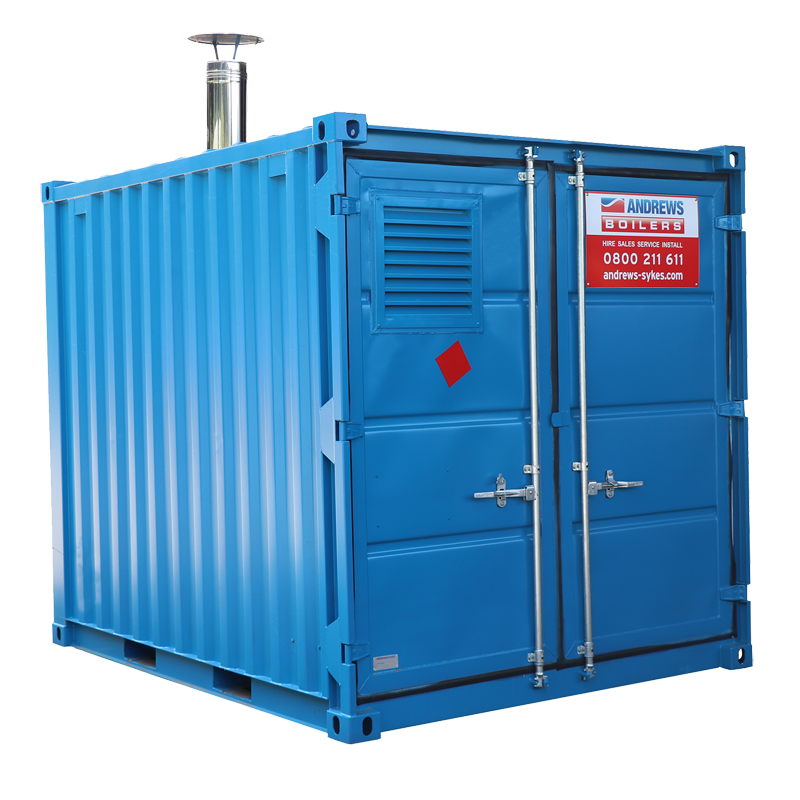

The 250kW containerised boiler is a quick and reliable solution to a wide range of applications requiring significant heating and hot water capacities. Designed for a multitude of durable environments including building sites, marquees, leisure centres, care homes, hotels, hospitals, warehouses and factories, our 250kW boiler units provide clients with a purpose-built twin circuit full mobile plant room housed in a reinforced steel container. This boiler is compatible with a 230V power supply and can be run from gas oil or natural gas fuel sources. The unit can function as a standalone solution, as a replacement for a faulty boiler or act as a supplementary solution in instances where greater heating or hot water capacities are required.
Feature
Nominal heating duty | 250 kW |
---|---|
Power supply | 230 V 1ph N+E 50 Hz Run 10 A |
Plug type | BS4343 16 A |
Noise level | 45 dBA @ 10 metres |
Weight | 2,000 kg |
Dimensions (L x W x H) | 3,000 x 2,400 x 2,600 mm |
Fuel type | Gas Oil/Natural Gas |
Max fuel consumption | 31 l/h Gas Oil |
LPHW connections | 50 mm (2”) storz coupling |
DHW connections | 50 mm (2") storz coupling |
Natural gas connections | 1 ¼” BSP coupling |
10M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
20M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
1000L BUNDED FUEL TANK
2000L BUNDED FUEL TANK
2800L BUNDED FUEL TANK
3000L BUNDED FUEL TANK
5M HP FUEL LINE
GAS OIL
NATURAL GAS OPTION
STORTZ HOSE 50MM LPHW
STORTZ HOSE 50MM DHW
STORTZ HOSE 25MM DHW RECIRCULATION
STORTZ CONNECTOR 50MM ALLOY (LPHW)
STORTZ CONNECTOR 50MM BRASS (DHW)
STORTZ CONNECTOR 25MM BRASS (DHW) RECIRC
HEAT EXCHANGER
PRESSURISATION UNIT 230V (LPHW)
FAN COIL / AHU
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Oil
375 kW 1279500 btu
44 ltrs/hr
Gas
500 kW
42 l/h Gas Oil
Oil
380kW (300kW Oil, 80kW Electric)
23 l/h
Electric
80kW
48.5 kW/h
Gas
300 kW
27 l/h Gas Oil
Gas
1,250 kW
100 I/h
Gas
100 KW
12.5 l/h Gas Oil
