Immediate Despatch

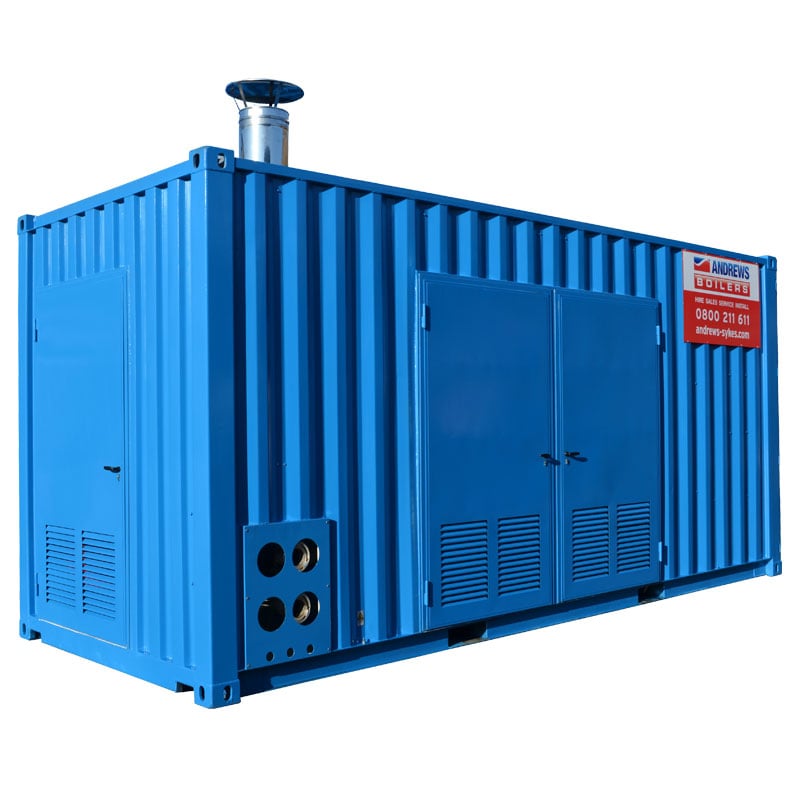

The 1,500kW Low Pressure Hot Water containerised boiler provides quick and efficient supply of hot water to a wide range of applications, including district heating systems, hospitals and process plants. Housed in a secure vandal proof container, the unit can be delivered, positioned and connected to existing services quickly to restore hot water to any building or process. This high capacity boiler incorporates a 3-stage burner which helps to conserve fuel and reduce emissions. Complete with heat exchanger, pumps and controls, the unit can be put into action within minutes of arriving on site. This boiler is usually fuelled by gas oil or diesel, but for long-term applications it can be modified to run on natural gas from a mains supply.
Feature
| Nominal heating duty | 1,500 kW |
|---|---|
| Dimensions (L x W x H) | 6,058 x 2,438 x 2900 mm (without flue) |
| Weight | 8,900 kg |
| Noise level (max) | 47 dBA @ 10 metres |
| Power supply | 415 V 3 ph N+E 50 Hz Run 27 A |
| Plug type | BS4343 5 pin 32 amp |
| Control | Automatic thermostat |
| Average power consumption | 11.2kW/h |
| Fuel type | Gas Oil |
| Fuel consumption (max) | 172.5 l/h |
| LPHW connections (flow / return) | 100 mm DN100 PN16 flange |
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
2800L BUNDED FUEL TANK
3000L BUNDED FUEL TANK
6000L BUNDED FUEL TANK
10000L BUNDED FUEL TANK
5M HP FUEL LINE
GAS OIL
NATURAL GAS OPTION
6M X 100MM DN100/PN16 FLANGED HOSE (LPHW)
HEAT EXCHANGER
FAN COIL / AHU
Use our simple Cooling and Heating Calculators to work out which of our products would suit your requirements best.
Gas
250 kW
31 l/h Gas Oil
Oil
375 kW 1279500 btu
44 ltrs/hr
Gas
500 kW
42 l/h Gas Oil
Oil
380kW (300kW Oil, 80kW Electric)
23 l/h
Electric
80kW
48.5 kW/h
Gas
1,250 kW
100 I/h
Gas
100 KW
12.5 l/h Gas Oil
