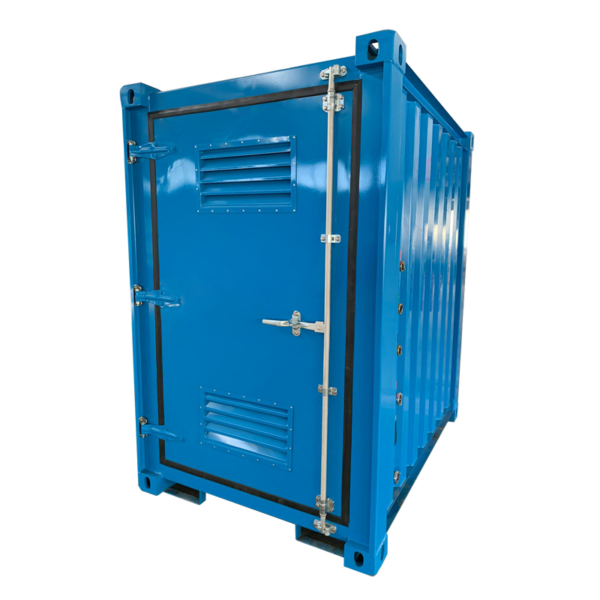

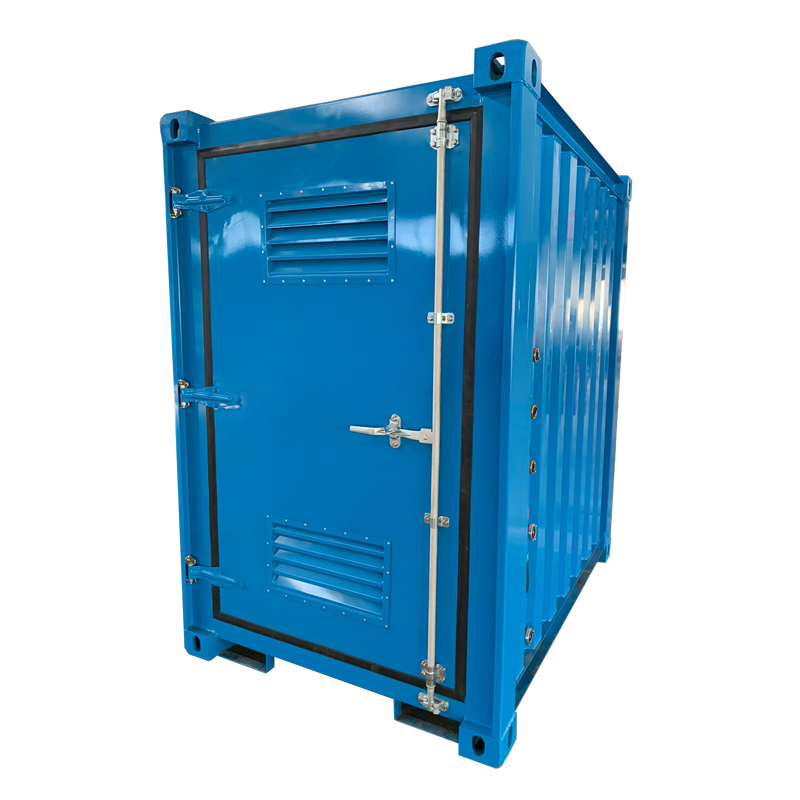

The 100kW containerised boiler provides a fast and effective solution to a wide range of applications that require heating and hot water. Designed for many environments including hard-wearing applications such as construction sites, our 100kW boiler units offer a bespoke twin circuit full mobile plant room built within reinforced steel containers for maximum security. This particular boiler is compatible with a 230 V power supply and can be run from gas oil or natural gas fuel sources. The unit can be used as a complete standalone solution, to supersede a faulty boiler or act as a supplementary solution in instances where greater capacities are required. Our 100kW boiler is perfect for a variety of environments including building sites, marquees, leisure centres, care homes, hotels, hospitals, warehouses and factories.
Feature
Nominal heating duty | 100 kW |
---|---|
Power supply | 230 V 1 ph N+E 50 Hz Run 10 A |
Plug type | BS4343 16 A |
Noise level | 45 dBA @ 10 metres |
Weight | 980 kg |
Dimensions (L x W x H) | 2,200 x 1,550 x 2,400 mm |
Fuel type | Gas Oil/Natural Gas |
Max fuel consumption | 12.5 l/h Gas Oil |
LPHW connections | 25 mm (1") storz coupling |
DHW connections | 25 mm (1") storz coupling |
Natural gas connections | 3/4" BSP coupling |
10M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
20M x 230V 16AMP EXTENSION LEAD 2.5MM DIA
1000L BUNDED FUEL TANK
2000L BUNDED FUEL TANK
2800L BUNDED FUEL TANK
3000L BUNDED FUEL TANK
5M HP FUEL LINE
GAS OIL
NATURAL GAS OPTION
STORTZ HOSE 25MM LPHW
STORTZ HOSE 25MM DHW
STORTZ CONNECTOR 25MM ALLOY (LPHW)
STORTZ CONNECTOR 25MM BRASS (DHW)
PRESSURISATION UNIT 230V (LPHW)
HEAT EXCHANGER
BUFFER TANK
FAN COIL / AHU
