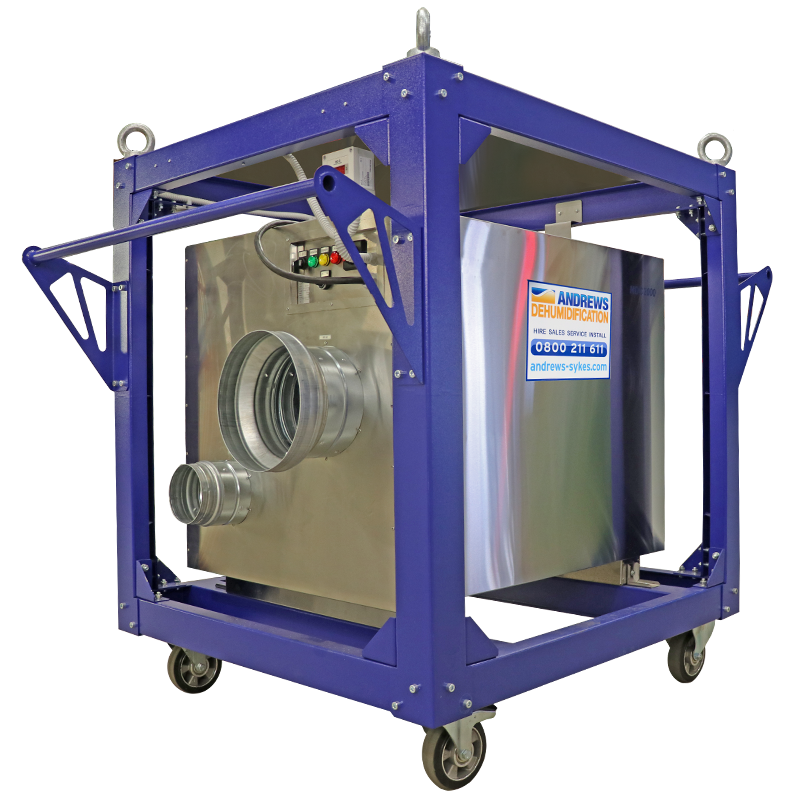

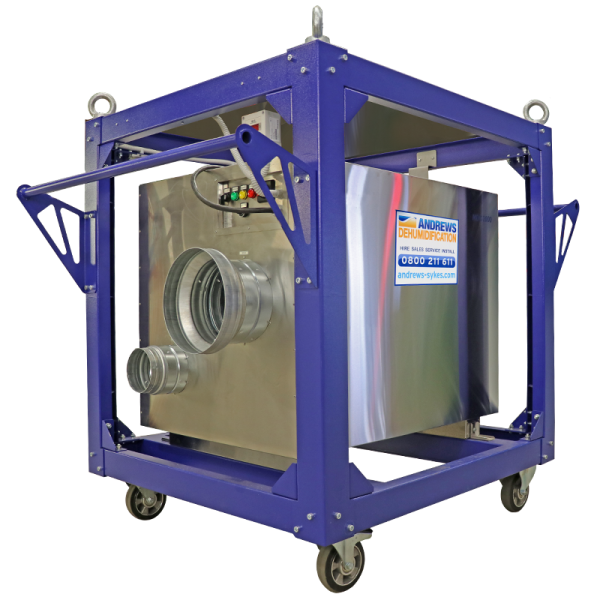

KT2200 Desiccant Dehumidifier

The K2200 is a cost-effective desiccant dehumidifier designed for applications where low relative humidity is required and where work is being carried out at very low temperatures. With an average power consumption of just 10kW/h, this model is significantly more economical than similar units available elsewhere. Considered a more efficient option than refrigerant dehumidifiers when temperatures are 10°C or below, the K2200 can keep dry areas of up to 7,000m³ or dry out areas of up to 3,500m³. Like all desiccant dryers, this product draws air across a rotating wheel containing a silica gel to remove moisture from the atmosphere. This particular unit is commonly deployed in challenging or hazardous applications, including fuel storage tanks, marine sites and ship holds.

Key Features

Feature

Feature

Extraction rates of up to 480 litres every 24 hours

ideal for large areas

Quiet operation

can be left running without disrupting others

Fully automatic

can run unattended

Compatible with ducting

for projects with site restrictions

Large airflows

perfect for high capacity drying

Reduced power consumption

affordable running costs

Simple installation

enabling immediate use

Robust construction

can be used in challenging environments

Product Specification

Additional information

Extraction rate (max)

480 litres/24hr

Nominal extraction duty at 60% RH @ 20°

310 litres/24hr

Air flow (max)

2,200 m3/h

Keep dry area (typical)

7,000 m³

Dry out area (typical)

3,500 m³

Power supply

415V 3 ph N+E 50 Hz Run 24A

Plug type

BS4343 5 pin 32 A

Generator size

22 kVA

Duct length (max)

40 metres

Noise level (max)

70 dBA / 79lWA @ 1 metre

Weight

315 kg

Dimensions (L x W x H)

1,326 x 1,210 x 1,510 mm

Control

Manual or Auto (humidistat mounted)

Power consumption

7.1 kW/h

Duct diameters

Process in 300mm, Dry out 300mm, Wet out 150mm, Refrigeration air in 150mm

Accessories

0M EXT LEAD BS4343 5 PIN 32 AMP 415V 6MM DIA
20M EXT LEAD BS4343 5 PIN 32 AMP 415V 6MM DIA
REMOTE HUMIDISTAT
FLEXIBLE DUCT (WET AIR) 200MM
FLEXIBLE DUCT (DRY AIR) 300MM
FLEXIBLE DUCT (PROCESS AIR) 300MM

Environments

Building drying
Industrial processes
Electrical switch rooms
Tank drying
Pharmaceutical
Agriculture
Marine
Petrochemical
Warehouses
Product Storage
Corrosion prevention
Construction sites
