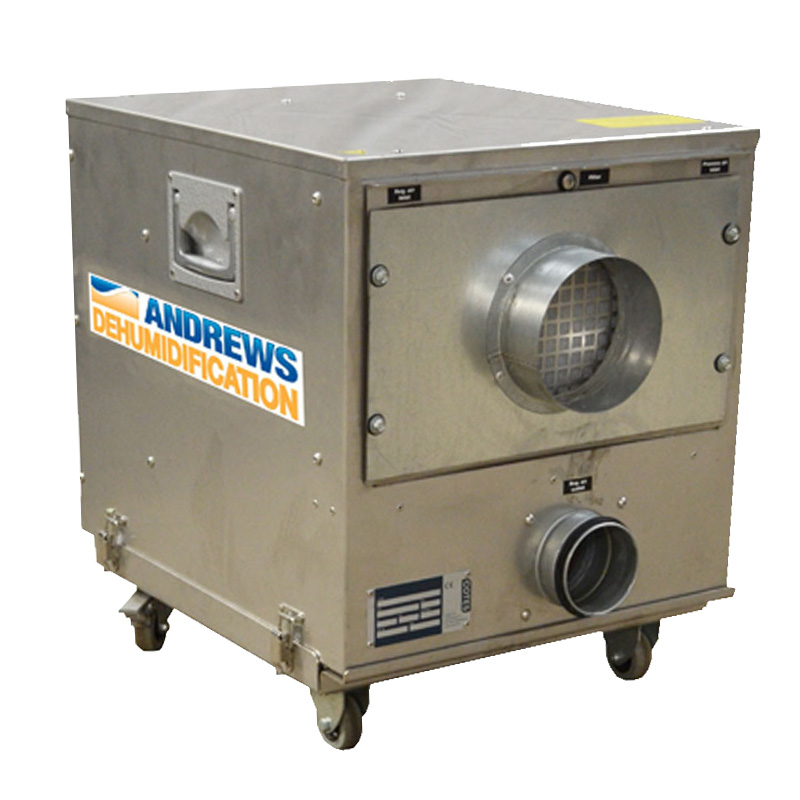

The DS40 desiccant dehumidifier has been designed for use in instances where work is being carried out at low temperatures. This particular unit is a perfect drying solution in applications where temperatures are around 10°C, operating more efficiently than refrigerant dehumidifiers. Capable of extracting up to 55 litres of moisture per 24 hours of operation, the DS40 model’s small specifications render it perfect for tight areas requiring drying. Once installed, the product is capable of operating unattended and is suitable for deployment in a range of environments including building sites, warehouses, pharmaceutical processes and tank drying.
Feature
ideal for large areas
can be left running without disrupting others
can run unattended
for projects with site restrictions
perfect for high capacity drying
affordable running costs
enabling immediate use
can be used in challenging environments
Extraction rate (max) | 55 litres/24hr |
---|---|
Nominal extraction rate at 75% RH / 20oC | 33 litres/24hr |
Air flow (max) | 160 m3/h |
Keep dry area (typical) | 726 m3 |
Dry out area (typical) | 363 m3 |
Power supply | 110 V 1 ph 50 Hz Run 11.5 A |
Plug type | BS4343 110 V 32 A |
Generator size | 3 kVA |
Duct length (max) | 5 metres |
Noise level (max) | 66 dBA @ 1 metre |
Weight | 30 kg |
Dimensions (L x W x H) | 550 x 460 x 700 mm |
Control | Manual (Humidistat Option) |
Average power consumption | 2.1 kw/h |
Duct diameters | Wet out 80 mm, Dry out 100 mm, Process in 125 mm |
230V / 110V 5KVA CONTINIOUS TRANSFORMER
10M x 110V EXTENSION LEAD 4MM DIA
20M x 110V EXTENSION LEAD 4MM DIA
REMOTE HUMIDISTAT
FLEXIBLE DUCT (WET AIR) 80MM
FLEXIBLE DUCT (DRY AIR) 100MM
FLEXIBLE DUCT (PROCESS AIR) 100MM
DUCT CLIPS
Building drying
Industrial processes
Electrical switch rooms
Agriculture
Tank drying
Warehouses
Tank coating
Pharmaceutical processes
Computer rooms
Marine
